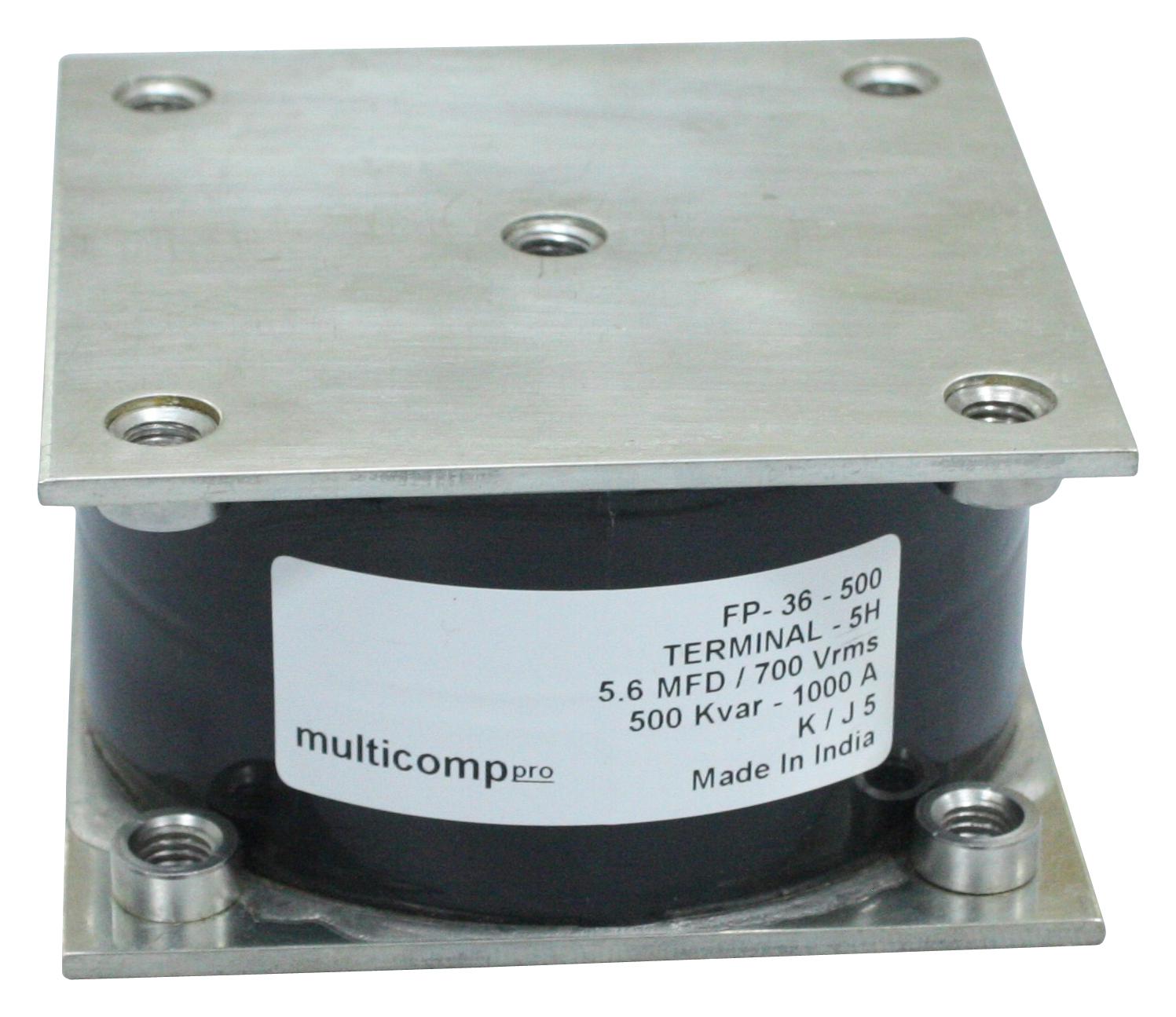

MULTICOMP PRO MP004057 Power Film Capacitor
Power film capacitors with screw and stud terminals designed for high-frequency applications up to 100 kHz. Features include polypropylene dielectric, self-healing properties, and RoHS compliance. Suitable for conduction cooling, with a maximum operating temperature of 85°C, flame retardant UL94-VO rating, and voltage ratings from 500 VRMS to 1100 VRMS. Capacitance varies from 1.4 µF to 26 µF, supporting currents up to 1000 ARMS and power levels up to 600 KVAR. Dimensions and terminal styles are optimized for robust connections in industrial power systems.
MULTICOMP PRO MP004057 Power Film Capacitor Specifications:
- Voltage Ratings: 500 VRMS to 1100 VRMS
- Capacitance Values: 1.4 µF to 26 µF
- Maximum Operating Temperature: 85°C
- Frequency Range: Up to 100 kHz
- Dielectric Material: Polypropylene
- Features: Self-healing, RoHS compliant, Flame retardant UL94-VO
- Current: Up to 1000 ARMS
- Power Support: Up to 600 KVAR
- Terminal Style: Screw and Stud terminals
- Dimensions: varies by model, typical sizes include L=54 mm, H=54 mm, B=100 mm
Buy the Multicomp Series Power Film Capacitors: MP004057
Order the Multicomp power film capacitor MP004057 online for your industrial power systems. Designed for high-frequency applications, it features polypropylene dielectric, self-healing properties, and RoHS compliance. Supports voltages up to 1100 VRMS, currents up to 1000 ARMS, and frequencies up to 100 kHz. Its robust construction includes screw and stud terminals, optimized dimensions for secure connections, and flame retardant UL94-VO rating. Perfect for conduction cooled power filtering, motor drives, and energy storage in industrial environments. Buy now for dependable, long-lasting power performance.
Get Multicomp power film capacitor MP004057 today—built for high-frequency power management and reliable industrial performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004057?
You can click on the BUY or RFQ button to purchase MP004057 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004057?
You can download the MP004057 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004057?
MULTICOMP PRO
