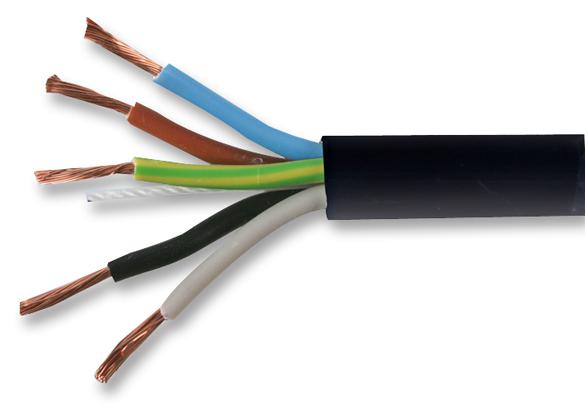

MULTICOMP PRO 3185Y250MMBLK PVC Insulated Mains Cable
The MULTICOMP PRO 3185Y series PVC insulated mains cable is a versatile solution for power supply applications. Constructed with plain annealed copper wire, PVC insulation, and a PVC sheath, this cable provides reliable performance in indoor environments. It's ideal for small electrical instruments, portable tools, and general wiring needs. The cable's flexible design and robust construction ensure durability and safety, making it a suitable choice for a wide range of applications. It is designed to operate within a temperature range of -15°C to +70°C and has a voltage rating of 300/500V.
MULTICOMP PRO 3185Y250MMBLK PVC Insulated Mains Cable Specifications:
- insulation_sheath_material: PVC
- insulation_colour: Blue, Brown, Yellow/Green Stripe, Black & Grey
- sheath_colour: Black
- voltage_test: Core to Core: 1,500V AC / 1min
- voltage_rating: 300/500V
- operating_temperature: -15°C to +70°C
- inner_diameter: 3.7mm
- outer_diameter: 9.4mm
- min_bend_radius: 94mm
- nominal_dc_resistance: 7.98Ω/km
- current_rating: 30A
- stranding: 50/0.25mm
Buy the 3185Y-2.50MMBLK MULTICOMP PRO PVC Insulated Mains Cable | myMectronic
Purchase the MULTICOMP PRO 3185Y-2.50MMBLK cable securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 3185Y250MMBLK?
You can click on the BUY or RFQ button to purchase 3185Y250MMBLK from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 3185Y250MMBLK?
You can download the 3185Y250MMBLK datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 3185Y250MMBLK?
MULTICOMP PRO
