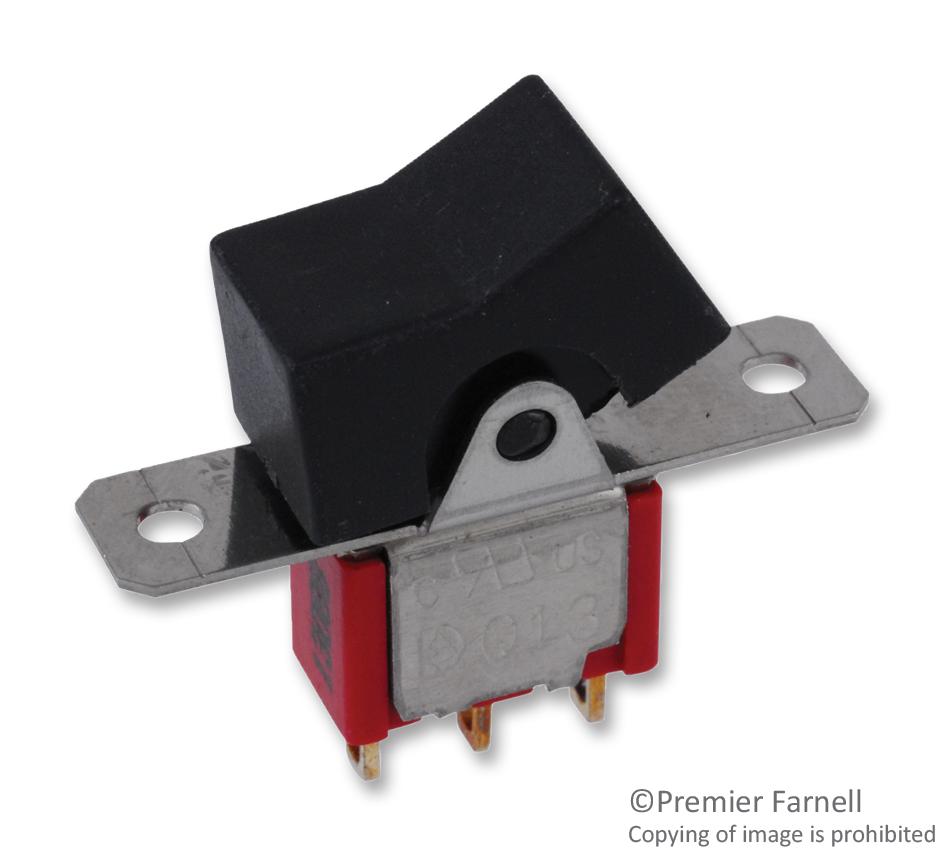

MULTICOMP-PRO 3MS1R1M1QE industrial control switch
This high-quality SPDT switch offers reliable performance with a 2A contact rating at 250V AC, a mechanical life of 50,000 cycles, and a temperature range from -30°C to 85°C. Constructed with durable materials including a diallyl phthalate case, nickel-plated brass, and stainless steel actuator, it features epoxy sealing for enhanced corrosion resistance. Designed for panel mounting, it includes solder lug terminations, with dimensions optimized for easy installation and maintenance. Suitable for various industrial and electronic control applications requiring precise switching and long-term durability.
MULTICOMP-PRO 3MS1R1M1QE industrial control switch Specifications:
- Contact Rating: 2A at 250V AC, resistive load
- Mechanical Life: 50,000 make-and-break cycles
- Max. Contact Resistance: 10mΩ at 2-4V DC, 100mA
- Min. Insulation Resistance: 1,000 MΩ
- Dielectric Strength: 1,000 Vrms at sea level
- Operating Temperature: -30°C to 85°C
- Materials: Diallyl phthalate (DAP) case, nylon housing, brass nickel-plated bushing, stainless steel actuator, tin-plated brass terminals
- Dimensions: Varied per model, typical panel cutout 29.36mm (1.156 inches), actuator length ~13.49mm (0.531 inches)
- Termination: Solder lug (0.078 inch diameter), suitable for manual and wave soldering
- Standards: RoHS compliant
Buy the Multicomp Series Switch: SPDT On-None-On: 3MS1
Enhance your electronic and industrial control systems with this reliable SPDT switch, rated for 2A at 250V AC, with a durable construction that withstands harsh environments. Designed for panel mounting, it features epoxy sealing for increased durability, with solder lug terminations for easy assembly. The switch offers a long lifespan of 50,000 cycles, operates between -30°C and 85°C, and is constructed with high-quality materials like diallyl phthalate and nickel-plated brass, ensuring consistent performance in demanding applications.
Buy Multicomp Series SPDT On-None-On switch now and experience unmatched reliability and performance in your industrial and control projects.
