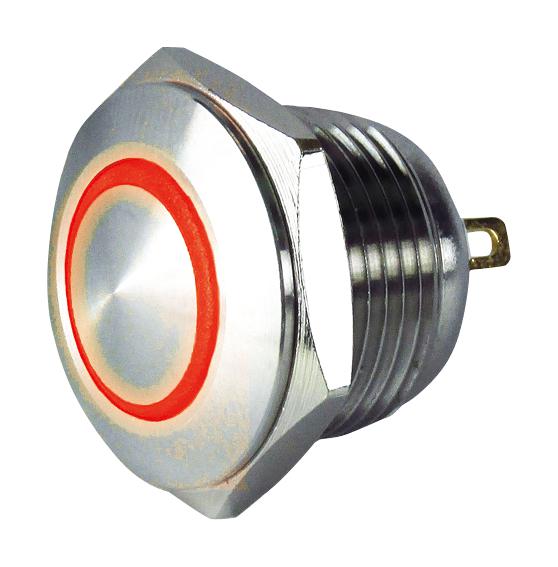

MULTICOMP PRO MC010880 Vandal Resistant Switch
The illuminated vandal resistant switch with ring configuration is designed for harsh environments, providing high durability, reliable switching, and excellent illumination options. Made from stainless steel with epoxy-sealed LED lights, it features a rated voltage of 48V DC, and operates with a contact configuration of 1NO. The switch supports various LED colors including red, green, and blue, and offers a mechanical life of 1,000,000 cycles, alongside an electrical life of 50,000 cycles. Its rugged design ensures P67 degree of protection and vibration and shock resistance, ideal for industrial and outdoor use.
MULTICOMP PRO MC010880 Vandal Resistant Switch Specifications:
- Rated Voltage: 48V DC
- Rated Current: > 100mA
- LED Voltage: 12V
- LED Colour: Green, Red, Blue
- Switch Operation: 1NO
- Material / Finish: Stainless Steel
- Dielectric Strength: 2000V AC / min between live parts and ground, 1000V AC / min between terminals
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 100MΩ Min at 500V DC
- Operating Humidity: 45-85% RH (no condensation)
- Storage Temperature: -30°C to +70°C
- Operating Temperature: 1°C to +50°C
- Vibration Resistance: 5-55Hz, 0.5mm amplitude
- Shock Resistance: 200-500 m/s²
- Mechanical Life: 1,000,000 cycles momentary, 250,000 cycles maintained
- Electrical Life: 50,000 cycles
- Degree of Protection: IP67
- Terminal Style: Solder terminal
- Weight: 11g
Buy the Buy multicomp Illuminated Vandal Resistant Switch Part Number MC010880 Online
Purchase the multicomp vandal resistant illuminated switch online today for durable, waterproof, and reliable performance in demanding environments. Featuring high cycle life, IP67 protection, and versatile LED colors, this switch is ideal for industrial and outdoor applications. Its stainless steel body ensures longevity, resistance to vibration and shocks, and ease of installation with solder terminals. Available with different LED colors and configurations, it offers all essential features for rugged switch needs that ensure safety and long-term operation.
Buy multicomp MC010880 now and experience unmatched durability, high illumination, and reliable switching suitable for harsh industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010880?
You can click on the BUY or RFQ button to purchase MC010880 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010880?
You can download the MC010880 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010880?
MULTICOMP PRO
