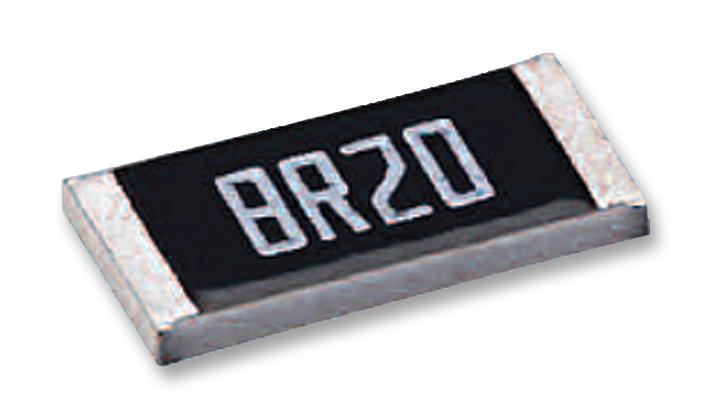

MULTICOMP PRO MP005100 Precision Resistor
High-precision tantalum nitride thin film resistors offering excellent stability in humid and sulfur-rich environments. Suitable for automotive, medical, testing, and communication applications, these RoHS-compliant resistors feature resistance values from 47 ohm to 240K ohm, with tight tolerance of 0.1%. They meet AEC-Q200 standards, ensuring reliability in harsh conditions. Designed with special materials and processes, these resistors have robust resistance to humidity, moisture, and sulfur exposure, making them ideal for automatic equipment controllers, converters, and measurement equipment. They are available in various sizes including 0402, 0603, 0805, and 1206.
MULTICOMP PRO MP005100 Precision Resistor Specifications:
- Resistance Range: 47Ω to 240KΩ
- Resistance Tolerance: 0.1%
- Size Options: 0402, 0603, 0805, 1206
- Maximum Voltage: 50V (0402), 75V (0603), 100V (0805), 200V (1206)
- Operating Temperature Range: -55°C to +155°C
- Temperature Coefficient: 25ppm/°C
- Power Rating: 1/16W (0402), 1/16W (0603), 1/16W (0805), 1/2W (1206)
- Material: Tantalum Nitride Thin Film
- Compliance: RoHS, AEC-Q200
- Application: Automotive, Medical, Testing, Communication, Automatic Equipment
- Humidity and Sulfur Resistance: Test Proven
Buy the Buy Multicomp Resistor Part Number MP005100 Online
Discover the reliable performance of Multicomp precision resistors, featuring tantalum nitride thin film technology. Ideal for automotive, medical, and measurement applications, these resistors provide high stability, excellent humidity and sulfur resistance, and meet stringent standards like RoHS and AEC-Q200. Available in multiple sizes such as 0402, 0603, 0805, and 1206, with resistance values from 47 ohm to 240K ohm, they ensure dependable operation across a -55°C to +155°C temperature range. Purchase online today for quality and durability.
Get Multicomp MP005100 today—designed for high stability and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005100?
You can click on the BUY or RFQ button to purchase MP005100 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005100?
You can download the MP005100 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005100?
MULTICOMP PRO
