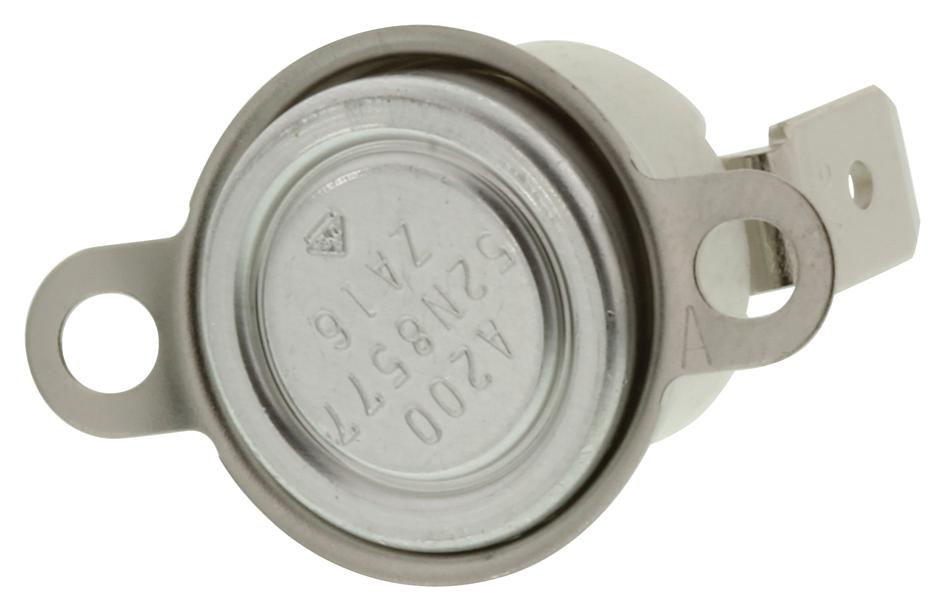

MULTICOMP PRO 52N12T944200160 Thermal Cutout Thermostat
The MULTICOMP PRO 52N12T944(200/160) thermal cutout thermostat provides reliable over-temperature protection for a wide range of industrial and consumer applications. Designed for use in household appliances, electronics, and machinery, this thermostat offers a long service life with up to 100,000 cycles. It features various terminal options and a customizable hysteresis, allowing for precise temperature control. Available with both normally closed and normally open configurations, this thermostat ensures safe and efficient operation of protected equipment. Specialized versions for low-temperature applications and electronic devices are also available, catering to diverse industrial needs.
MULTICOMP PRO 52N12T944200160 Thermal Cutout Thermostat Specifications:
- Control Type: Automatic / Manual
- Ratings: R28, R27, R29
- Rated Current at 250 V AC: 16A
- Switching Cycles: 10,000 / 6,000 / 3,000
- Temperature Range TA: 0°C to 150°C / 230°C / 250°C
- Rated Current at 250 Vac: 10A
- Tolerance: Ta<100°C: ± 3K / Ta>100°C: ± 4K / Ta>140°C: ± 5K
- Contact Resistance: <30mΩ
- Hysteresis / Reset Temperature: Ta<100°C: 10K ±4K / Ta>100°C: 15K ±5K / Ta>140°C : 20 K ± 5 K
- Dielectric Strength: 2,000V AC / 1,800V AC
- Terminal Options: 6.3 x 0.8 mm, Solder Terminals, PCB Terminals
- Housing Material: Thermosetting plastic, Ceramic, Aluminium
- Cap Options: Standard, Low Temperature
Buy the 52N12T944(200/160) MULTICOMP PRO Thermal Cutout Thermostat | myMectronic
Purchase the MULTICOMP PRO 52N12T944(200/160) thermal cutout thermostat securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 52N12T944200160?
You can click on the BUY or RFQ button to purchase 52N12T944200160 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 52N12T944200160?
You can download the 52N12T944200160 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 52N12T944200160?
MULTICOMP PRO
