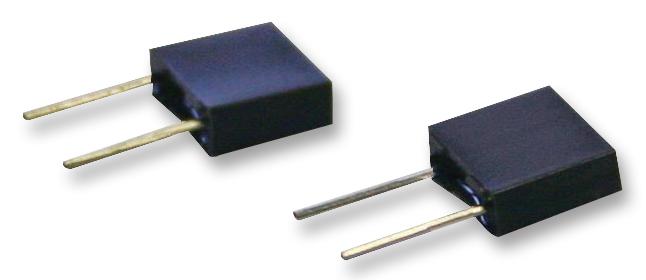

MULTICOMP PRO MCPBSFC1J4474KB45 Plastic Film Capacitor
This 5mm plastic film capacitor from multicomp features metallised polyester construction with a voltage rating of 63V DC / 40V AC. Encapsulated in flame-retardant plastic cases with stand-off feet, it offers a capacitance of 0.047uF with a tolerance of 10%. Designed for reliable performance across temperatures from -55°C to +85°C, it exhibits an insulation resistance of 215,000 MQ at 25°C over 25,000 seconds and a dissipation factor of 2.1% at 1 kHz. Its compact size, industry-standard pitch of 5mm, and durable construction make it suitable for various electronic applications.
MULTICOMP PRO MCPBSFC1J4474KB45 Plastic Film Capacitor Specifications:
- Capacitance: 0.047uF with 10% tolerance
- Voltage Rating: 63V DC / 40V AC
- Operating Temperature Range: -55°C to +85°C
- Maximum Temperature with Voltage Derating: 105°C
- Insulation Resistance: 215,000 MQ at 25°C over 25,000 seconds
- Dissipation Factor: 2.1% at 1 kHz
- Body Material: Epoxy resin encapsulated in flame-retardant plastic case
- Construction: Metallised polyester with stacked configuration
- Pitch: 5mm
- Dimensions: Max width 7.2 mm, max height 6.5 mm, max depth 25 mm
- Body Colour: Grey
Buy the Buy multicomp Capacitor Part Number MCPBSFC1J4474KB45 Online
Order the multicomp plastic film capacitor now and enjoy swift delivery and excellent performance in your electronic projects. Featuring a robust design with flame-retardant plastic casing, this 5mm pitch capacitor offers a capacitance of 0.047uF, rated at 63V DC, suitable for diverse industrial and consumer applications. Its wide temperature range from -55°C to +85°C ensures reliable operation in harsh environments. With high insulation resistance of 215,000 MQ and a dissipation factor of 2.1%, it guarantees durability and efficiency in your electronic assemblies.
Buy multicomp MCPBSFC1J4474KB45 now and experience reliable performance with durable flame-retardant plastic encapsulation and industry-standard size.
