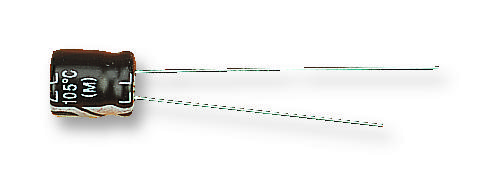

MULTICOMP PRO MCMHR16V107M63X7 Electrolytic Capacitor
The Multicomp Pro MCMHR series capacitors are radial leaded, polarized aluminum electrolytic capacitors with capacitance values ranging from 0.1µF to 470µF. They feature a compact body length of 7mm, making them suitable for high-density electronic applications. These capacitors are rated for voltages from 6.3VDC to 63VDC with a tolerance of ±20%. They have an endurance of 1000 hours at 105°C and operate within a temperature range of -40°C to 105°C. The physical size varies from 4mm x 7mm to 8mm x 9mm (diameter x length). Multicomp Pro products are rated highly by customers, with a 4.6 out of 5-star rating and a 12-month limited warranty.
MULTICOMP PRO MCMHR16V107M63X7 Electrolytic Capacitor Specifications:
- Capacitance Range: 0.1µF to 470µF
- Rated Voltage: 6.3VDC to 63VDC
- Tolerance: ±20% at+20°C,120Hz
- Operating Temperature: -40°C to +105°C
- Leakage Current: ≤ 0.01CV or 3 (uA) after two minutes
- Dissipation Factor (Tan 8): Max. 0.24 at 63V, 120Hz
- Endurance: 1000 hours at +105°C
- Size: 4mm x 7mm to 8mm x 9mm (diameter x length)
- RoHS Compliant
- Solvent Proof: withstands cleaning within 5 min in Freon TE, TES at 40°C or ultrasonic steam
Buy the Multicomp Series MCMHR Electrolytic Capacitor: MCMHR16V107M63X7
Purchase the Multicomp Series electrolytic capacitor today online to ensure high reliability and optimal performance for your electronic projects. These high-density, polarized aluminum capacitors feature capacitance values from 0.1µF to 470µF, suitable for various voltage ratings up to 63V. With a compact size of 4mm x 7mm to 8mm x 9mm, they are ideal for space-constrained designs. Rated for 1000 hours at 105°C, they withstand demanding conditions, making them a dependable choice for professionals needing durability, consistent quality, and RoHS compliance in their electronic assemblies.
Buy Multicomp Series MCMHR electrolytic capacitor now and experience reliable performance suitable for high-density electronic equipment.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMHR16V107M63X7?
You can click on the BUY or RFQ button to purchase MCMHR16V107M63X7 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMHR16V107M63X7?
You can download the MCMHR16V107M63X7 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMHR16V107M63X7?
MULTICOMP PRO
