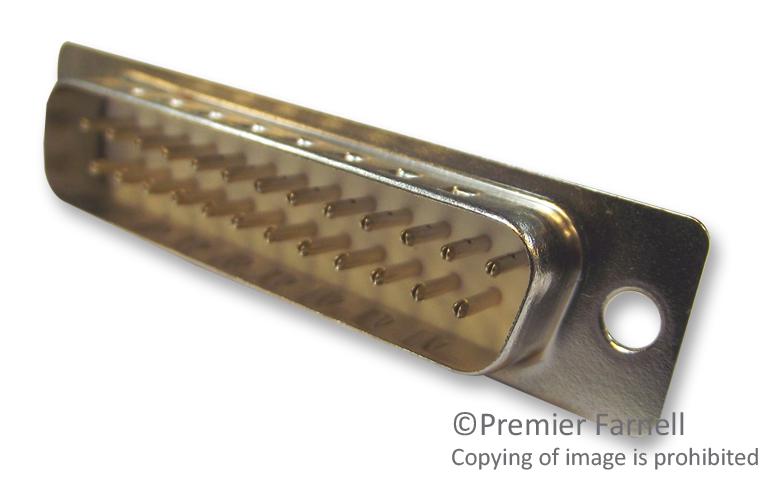

MULTICOMP PRO 550225PA01F1 Standard D-Sub Connector
The 25-position standard D-sub plug features gold-plated brass contacts for reliable connectivity, a tin-plated steel shell for durability, and a PBT insulator reinforced with 30% glass fiber for mechanical strength. It connects via solder contact termination and supports rated currents of 5A at 350VAC. The component offers a contact resistance of 5 milliohms, insulation resistance exceeding 1,000 Megaohms, and withstands dielectric voltage of 500VAC for one minute. Suitable for industrial applications, it ensures secure connections and robustness in various electronic systems.
MULTICOMP PRO 550225PA01F1 Standard D-Sub Connector Specifications:
- Voltage Rating: 350V AC
- Current Rating: 5A
- Dielectric Withstanding Voltage: 500V AC (RMS) for 1 minute
- Insulation Resistance: Over 1,000 Megaohms
- Contact Resistance: 5 milliohms at 1A
- Operating Temperature: -40°C to +100°C
- Material: PBT +30% glass fibre insulator
- Pin Contacts: Brass gold plated
- Shell: Steel, nickel plated or tin plated
- Number of Positions: 25
- Dimensions: A: 38.96mm, B: 47.04mm, C: 53.04mm, D: 8.38mm, E: 125mm
- Connection Type: Solder
- Part Number: 5502-25PA-01-F
Buy the Multicomp Series Standard D-Sub Connector: 5502-25PA-01-F
Enhance your electronic assembly with the durable and reliable 25-position D-sub connector featuring gold-plated contacts, a steel shell, and a reinforced PBT insulator. Rated for 5A and 350VAC, it offers excellent insulation resistance and dielectric withstand properties. Its robust solder connection ensures secure electrical contact, making it ideal for industrial, automation, and communication systems. Purchase online to enjoy quick delivery, trusted quality, and the assurance of a high-performance component that guarantees long-lasting, dependable connections in your electronic projects.
Buy Multicomp Series 5502-25PA-01-F now and experience reliable connectivity with durable metal shells and high-quality gold-plated contacts for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 550225PA01F1?
You can click on the BUY or RFQ button to purchase 550225PA01F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 550225PA01F1?
You can download the 550225PA01F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 550225PA01F1?
MULTICOMP PRO
