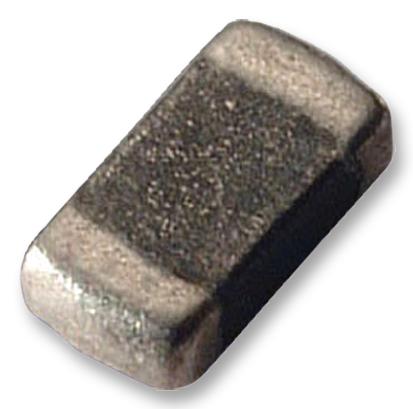

MULTICOMP PRO MCVZ0603M260AGT Multilayer Chip Varistor
Multilayer Chip Varistor is a reliable transient voltage surge suppression component designed to protect sensitive electronic circuits from transients and ESD. Manufactured using multilayer fabrication technology, it features bi-directional clamping and a broad operating voltage range from 5.5V to 38V, suitable for applications like I/O, Vcc protection, and sensitive ports. Compact, surface-mounted, it withstands IEC-61000-4-2 ESD tests with excellent voltage clamping ability, making it ideal for mobile devices, high-speed data lines, and audio/video interfaces. Its durable construction ensures dependable performance in harsh environments, rated for temperatures -55°C to +125°C, with small dimensions of 1.6mm x 0.8mm x 0.9mm, and nickel/tin terminals for easy soldering.
MULTICOMP PRO MCVZ0603M260AGT Multilayer Chip Varistor Specifications:
- Dimensions: Length 1.6mm ±0.15mm, Width 0.8mm ±0.15mm, Max thickness 0.9mm, Terminal electrode: Ni / Sn
- Operating temperature range: -55°C to +125°C
- Voltage range: 5.5V to 38V (oc), withstanding up to 30A surge current
- Capacitance: 100pF to 800pF (reference values)
- Maximum ratings: Continuous voltage at 5.5V, surge current 30A, energy 0.1J, capacitance 100-800pF
- High temperature storage: +125°C for 1,000 hours, low temperature storage: -40°C for 1,000 hours
- Humidity storage: 90-95%RH for 500 hours, resistance to soldering heat: 260°C immersion for 10 sec
- Solderability: 90% electrode coverage, mechanical reliability confirmed with adhesion and vibration tests
- Vibration test: 2 hours at 10Hz to 55Hz amplitude of 1.5mm
- Soldering: Infrared and reflow soldering profiles recommended, temperature profiles between 60-120°C
Buy the Multicomp MCVZ0603 – Reliable Transient Voltage Surge Suppressor for Industrial Applications
Order multicomp MCVZ0603 multilayer chip varistor today to ensure superior transient voltage and ESD protection for sensitive electronic components. Designed with multilayer fabrication technology, it offers bi-directional clamping and a broad operating voltage range of 5.5V to 38V, making it suitable for mobile devices, high-speed data lines, and video/audio ports. Its small dimensions of 1.6mm x 0.8mm ensure easy placement on surface-mount PCB designs. With excellent durability across temperature, humidity, and soldering conditions, this varistor provides lasting circuit protection, reducing risks of damage from external electrical interference.
Get multicomp MCVZ0603 today—built for reliable ESD and surge protection in compact electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCVZ0603M260AGT?
You can click on the BUY or RFQ button to purchase MCVZ0603M260AGT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCVZ0603M260AGT?
You can download the MCVZ0603M260AGT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCVZ0603M260AGT?
MULTICOMP PRO
