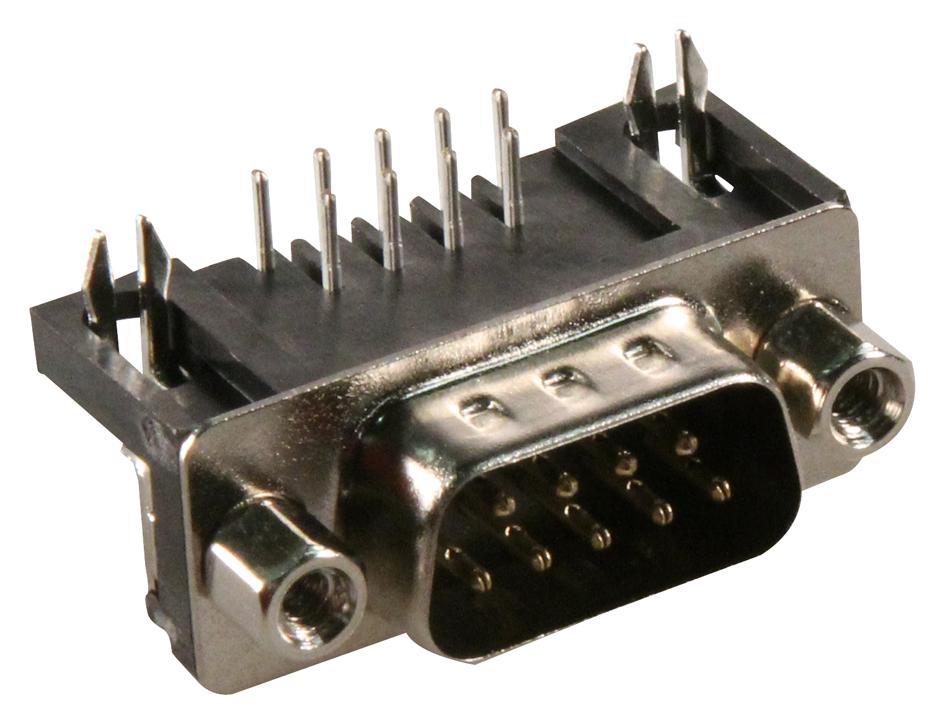

MULTICOMP PRO 5504F109P02A03 D-Sub Connector
The 5504F1 series from Multicomp Pro features reliable right-angled male D-sub connectors with 9 positions, designed for industrial electrical connections. These connectors support a current rating of 3A at 250V AC/DC, with brass contacts that are gold-plated for corrosion resistance. Operating within a temperature range of -55°C to +105°C, they feature insulating PBT shells and nickel-plated shells for durability. Suitable for rugged environments, they have an insulation resistance of ≥1000 MΩ, withstand voltage of 500V AC/minute, and are RoHS compliant, making them ideal for various industrial electronic systems.
MULTICOMP PRO 5504F109P02A03 D-Sub Connector Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: ≥1000 MΩ at 500V DC
- Withstanding Voltage: 500V AC/minute
- Temperature Range: -55°C to +105°C
- Insulator Material: PBT (UL94V-0)
- Contact Material: Brass, gold plated
- Shell Material: SPCC, Nickel Plated
- Board Lock Material: Brass, Tin Plated
- Connector Type: Right-angled male D-sub
- Number of Pins: 9
- RoHS Compliant
Buy the Multicomp 5504F1 – Reliable D-Sub Connector for Industrial Applications
Discover the dependable performance of the Multicomp Pro D-Sub Connector series. Designed for industrial electronics, these 9-pin, right-angle connectors support 3A at 250V with robust brass contacts and gold plating for corrosion resistance. Operating efficiently across -55°C to +105°C, they feature durable shells and a high insulation resistance of ≥1000 MΩ. Perfect for rugged equipment, their RoHS compliance ensures environmental safety. Order online now to upgrade your electrical connections with proven quality and ease of installation for your industrial projects.
Buy Multicomp 5504F1 right-angle D-sub connector now and experience reliable electrical connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 5504F109P02A03?
You can click on the BUY or RFQ button to purchase 5504F109P02A03 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 5504F109P02A03?
You can download the 5504F109P02A03 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 5504F109P02A03?
MULTICOMP PRO
