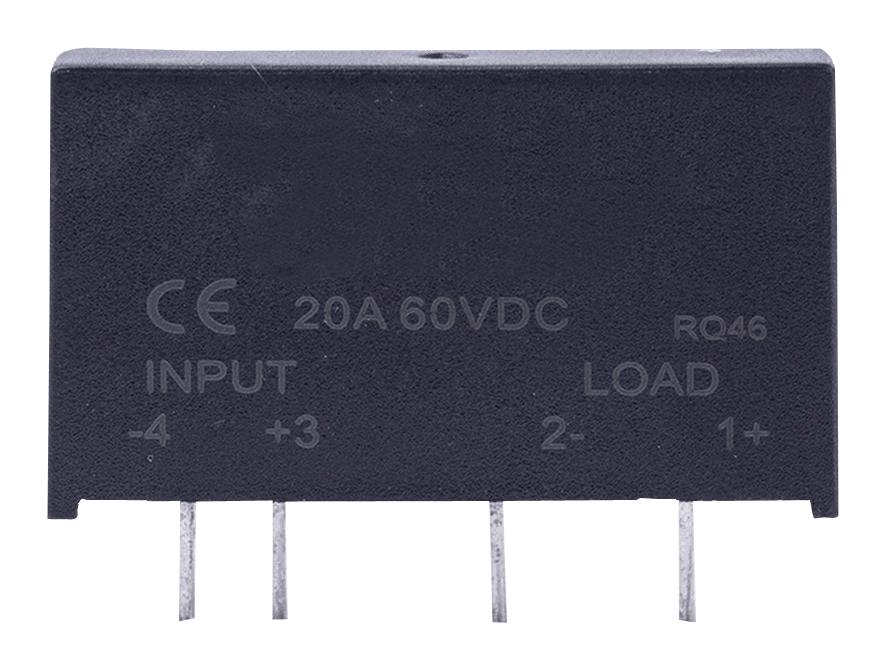

MULTICOMP PRO MC002255 Solid State Relay
This PCB mount solid state relay is designed for control and isolation between control signals and high current loads. It features a MOSFET output, low on-state resistance, and opto-isolation for safety. Suitable for applications involving DC motors, power supplies, and electromechanical devices, it supports load voltages of 60VDC and 100VDC. With dielectric strength of 22500Vrms and a control voltage range of 3-10V DC and 10-28V DC, it provides efficient switching with a maximum surge current of up to 100A. Compact and reliable, it operates across -30°C to +80°C ambient temperature.
MULTICOMP PRO MC002255 Solid State Relay Specifications:
- Input Circuit: 3-10V DC, Control Voltage Range: 10-28V DC, Minimum Turn-On Voltage: 3V DC, Minimum Turn-Off Voltage: 1V DC, Max Input Current: 15mA.
- Output Circuit: Load Voltage Range: 60V DC - 100V DC, Transient Over Voltage: 80Vpk - 120Vpk, Max Surge Current: 10A - 100A (@10ms), Max Turn-On Time: 1ms, Max Turn-Off Time: 1ms.
- Leakage Current: 0.1mA, Max On Resistance: 3.6mΩ at 20A, Dielectric Strength: 22500Vrms, Ambient Operating Temperature: -30°C to +80°C, Storage Temp: -30°C to +100°C.
- Weight: 20g, Dimensions: Millimetres, Relay type: PCB mount solid state relay, Suitable for DC motor and power supply control applications.
Buy the Multicomp Series Solid State Relay: MC002255
Order the Multicomp Pro MC002255 PCB mount solid state relay online today to enhance your control system with reliable switching. Designed for high-current DC loads up to 100VDC, it features MOSFET output and opto-isolation for safety and efficiency. Its compact size makes it ideal for space-constrained environments, and with a control voltage range of 3-10V and 10-28V, it offers versatile operation. Perfect for DC motor control, power supplies, and electromechanical devices, ensuring robust performance across various industrial applications.
Buy Multicomp Pro MC002255 now and experience unmatched reliability and high-current switching performance in your DC control applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002255?
You can click on the BUY or RFQ button to purchase MC002255 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002255?
You can download the MC002255 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002255?
MULTICOMP PRO
