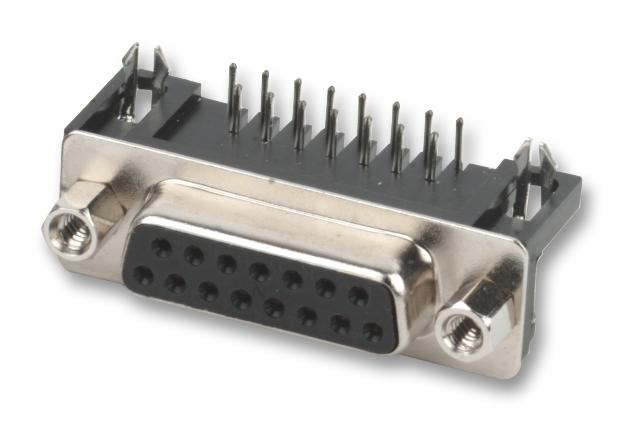

MULTICOMP PRO 5504F109S02A03 D-Sub Connector
The 5504F1 series from Multicomp Pro consists of right-angled male and female D-sub standard connectors. These connectors support a current rating of 5A and a voltage rating of 250VAC/DC. They operate within a temperature range of -40°C to +85°C, made from durable PBT insulation and copper alloy contacts with gold plating on contact areas and tin plating on solder tails. Designed for PCB mounting, they have varying pin counts from 9 to 37, with insulation resistance of at least 5,000 MΩ and withstand voltage of 1,000V AC for one minute. Suitable for industrial and electronic applications.
MULTICOMP PRO 5504F109S02A03 D-Sub Connector Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 30mΩ Max
- Insulation Resistance: 5,000 MΩ Min
- Withstanding Voltage: 1,000V AC for One Minute
- Operating Temperature Range: -40°C to +85°C
- Material: PBT insulation, Copper Alloy contacts
- Contact Plating: Gold on contact areas, Tin on solder tails
- Shell Material: Metal Iron with Nickel Plated
- Pin Configurations: 9, 15, 25, 37 ways
- Physical Dimensions: Vary by pin count, approx. length 30.81 mm to 69.32 mm
- Mounting Type: PCB right angle, 8.08mm footprint
Buy the Multicomp Series D-Sub PCB Connector: 5504F109S02A03
Enhance your electronic assemblies with the durable and reliable D-Sub connector series from Multicomp Pro. Designed for PCB mounting, these right-angle connectors support current up to 3A and voltage of 250V AC/DC. Available in various pin configurations from 9 to 37, they feature gold-plated contacts for superior conductivity and corrosion resistance. Operating efficiently within -40°C to +85°C, these connectors are ideal for industrial, automation, and electronic applications requiring secure, high-quality connections. Buy online today for precision and long-lasting performance.
Get Multicomp Pro 5504F109S02A03 today—built for reliable industrial PCB connections and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 5504F109S02A03?
You can click on the BUY or RFQ button to purchase 5504F109S02A03 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 5504F109S02A03?
You can download the 5504F109S02A03 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 5504F109S02A03?
MULTICOMP PRO
