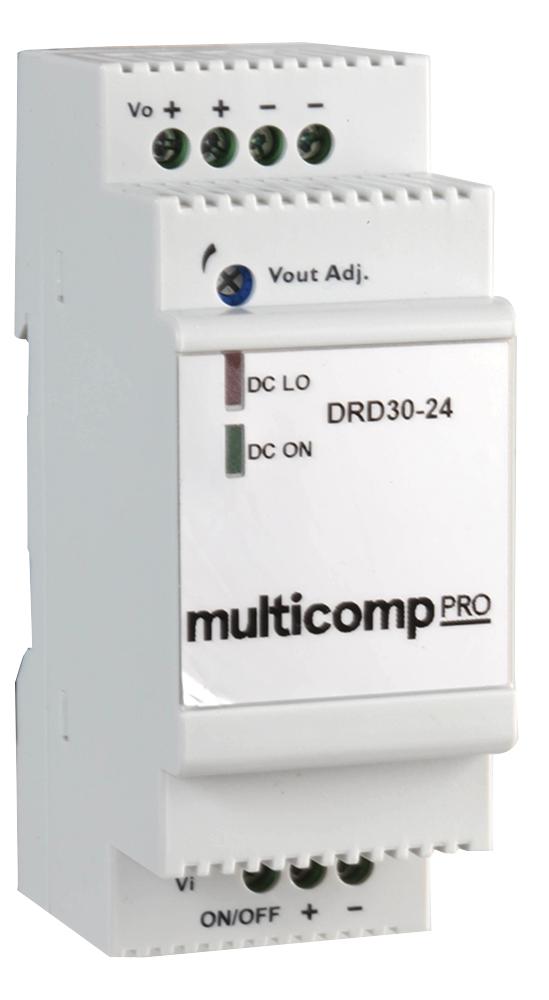

MULTICOMP PRO MPDRD3024 Industrial Power Supply
This 30W DC to DC power supply features DIN rail mounting, wide input voltage range of 10-36V DC, and multiple output options including 5V, 12V, and 24V. It includes short circuit protection, remote ON/OFF control, and high efficiency up to 85%. Designed for industrial automation and control panels, it offers compact dimensions of 91mm x 35mm x 56.5mm, and has certifications such as UL 508 and EN 61000-6-3. Suitable for rugged environments, it provides stable power with a robust construction and reliable performance.
MULTICOMP PRO MPDRD3024 Industrial Power Supply Specifications:
- Input Voltage Range: 10-36 VDC
- Input Current: No load 30 mA at nominal voltage
- Output Voltage Accuracy: ±1%
- Output Voltage Trim Range: 5V, 12V, 24V options, ±10%
- Rated Power: 30W
- Output Current: 5V: 4A, 12V: 2.1A, 24V: 1.05A
- Efficiency: Up to 85%
- Switching Frequency: 100-200 kHz
- Isolation Voltage: 1500 VAC/DC
- Dimensions: 91mm x 35mm x 56.5mm
- Operating Temperature: -40°C to +71°C, derating from +51°C
- Cooling: Free air convection
- Protection: Short circuit, overload, overvoltage, remote ON/OFF
- Standards: UL 508, EN 61000-6-3, EN 55032
- Vibration Resistance: IEC 60068-2-6
- Shock Resistance: IEC 60068-2-27
- Degree of Protection: IP20
- Weight: 120g
Buy the Multicomp Series DC-DC Power Supply: MPDRD3024
Procure the Multicomp series 30W DIN rail power supply online today and ensure dependable power delivery for your automation and control applications. This robust device features wide input voltage range, multiple output options, and protection features including short circuit and overload protection. Its compact size and high efficiency make it suitable for installation in demanding industrial environments. With certifications like UL 508 and EN 61000-6-3, you can trust this power supply for long-lasting, stable operation, enhancing your automation projects seamlessly.
Buy Multicomp series MPDRD3024 30W industrial DIN rail power supply now and experience unmatched reliability and performance for your automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDRD3024?
You can click on the BUY or RFQ button to purchase MPDRD3024 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDRD3024?
You can download the MPDRD3024 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDRD3024?
MULTICOMP PRO
