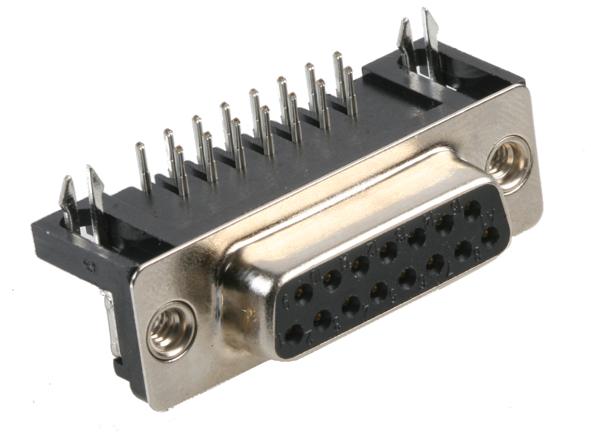

MULTICOMP PRO 5504F115S0203F1 D-Sub Connector
The 15-way 5A right angle D-Subminiature socket features selective gold-plated contacts with nickel undercoating, ensuring reliable electrical connection. Made from glass-filled thermoplastic with a black insulator, it offers durability and resistance to harsh environments. The connector has a maximum contact resistance of 30 milliohms and insulation resistance of 1,000 megaohms. It withstands voltages up to 1000VAC for one minute, rated for 5A per contact, and operates smoothly within -55°C to 105°C. Designed for PCB mounting, it is ideal for industrial, automation, and electronic device applications.
MULTICOMP PRO 5504F115S0203F1 D-Sub Connector Specifications:
- Material: Insulator — Glass-filled Thermoplastic, Contact — Brass (Pin), Phosphor Bronze (Socket), Metal Shell — Carbon Steel
- Contact Finish: Mating Area — Selective Gold Plated Over 50u" Nickel, Termination Area — Tin/Lead Plated Over 50u" Nickel
- Color: Black
- Electrical: Contact Resistance — 30mΩ max. At 1A, Insulation Resistance — 1000MΩ at 500V DC, Dielectric Withstanding Voltage — 1000VAC for 1 min, Current Rating — 5A per contact, Voltage Rating — 250VAC
- Mechanical: Single Contact Insertion Force — Max. 540g, Withdrawal Force — Min. 60g, Durability — 125 Cycles with gold plating, Operating Temperature — -55°C to 105°C
- Dimensions: No. of Positions — 15, Length — 39.1mm, Width — 33.32mm, Height — 24.59mm, Suitable for PCB mounting, Designed for high-reliability electronic applications
Buy the Buy Multicomp Right Angle PCB Mount D-Sub Connectors Part Number 5504F115S0203F1 Online
Purchase the Multicomp D-Sub Connector online today and enjoy a high-quality, durable electrical connector perfect for PCB applications. Featuring gold-plated contacts and a thermoplastic housing, this connector offers excellent electrical performance and mechanical durability. It is designed for easy PCB mounting and reliable long-term operation in various industrial and electronic environments. With a current rating of 5A per contact and insulation resistance exceeding 1000 megaohms, this connector ensures secure connections. Buy now to enhance your electronic projects with precision-engineered components.
Get Multicomp 5504F115S0203F1 today—built for durable electronic connections with gold-plated contacts and reliable PCB mounting design.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 5504F115S0203F1?
You can click on the BUY or RFQ button to purchase 5504F115S0203F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 5504F115S0203F1?
You can download the 5504F115S0203F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 5504F115S0203F1?
MULTICOMP PRO
