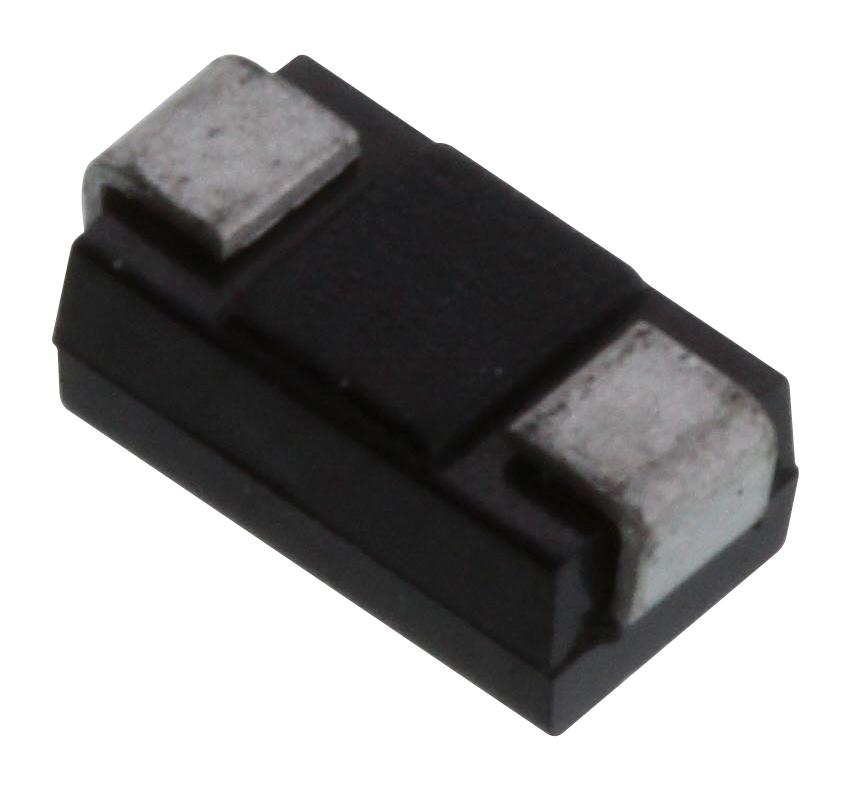

MULTICOMP PRO SS36A Schottky Barrier Rectifier
The SS36A is a surface mount Schottky barrier rectifier designed for low voltage, high frequency applications such as inverters, freewheeling, and polarity protection. It features a metal-semiconductor junction with guarding, epitaxial construction, very low forward voltage drop, and high current capability. The molded plastic case has UL 94V-0 flammability rating. It can handle a reverse voltage of 60V, forward current of 3A, and operates within a temperature range of -55°C to +150°C. It's ideal for compact circuitry requiring efficient rectification and minimal power loss.
MULTICOMP PRO SS36A Schottky Barrier Rectifier Specifications:
- Case: Molded Plastic
- Polarity: Colour band denotes cathode
- Weight: 0.007 ounces, 0.64 grams
- Reverse Voltage: 60 Volts
- Forward Current: 3 Amperes
- Maximum Ratings: Recurrent Peak Reverse Voltage 60V, Average Forward Rectified Current 3A at 25°C
- Peak Forward Surge Current: 8.3ms single half sine-wave
- Peak Forward Voltage at 3A DC: Typical values included in datasheet
- Maximum Reverse Current at 25°C: 1 mA
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance: Junction to Ambient and Junction to Lead, typical
- Dielectric Material: UL Flammability rated 94V-0
Buy the Buy Multicomp Pro Schottky Barrier Rectifier Part Number SS36A Online
Purchase the Schottky Barrier Rectifier SS36A online today to ensure your electronic projects benefit from efficient, low-forward-voltage switching capabilities. This surface mount device is perfect for high frequency inverters, freewheeling, and polarity protection circuits, offering high current capability, low reverse leakage, and excellent thermal performance. Its compact plastic package and UL certification make it suitable for space-constrained applications needing reliable and efficient power rectification. Order now to enhance your electronic designs with this high-quality rectifier.
Buy Multicomp Pro SS36A now and experience unmatched reliability and performance in low voltage power rectification with high efficiency.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SS36A?
You can click on the BUY or RFQ button to purchase SS36A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SS36A?
You can download the SS36A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SS36A?
MULTICOMP PRO
