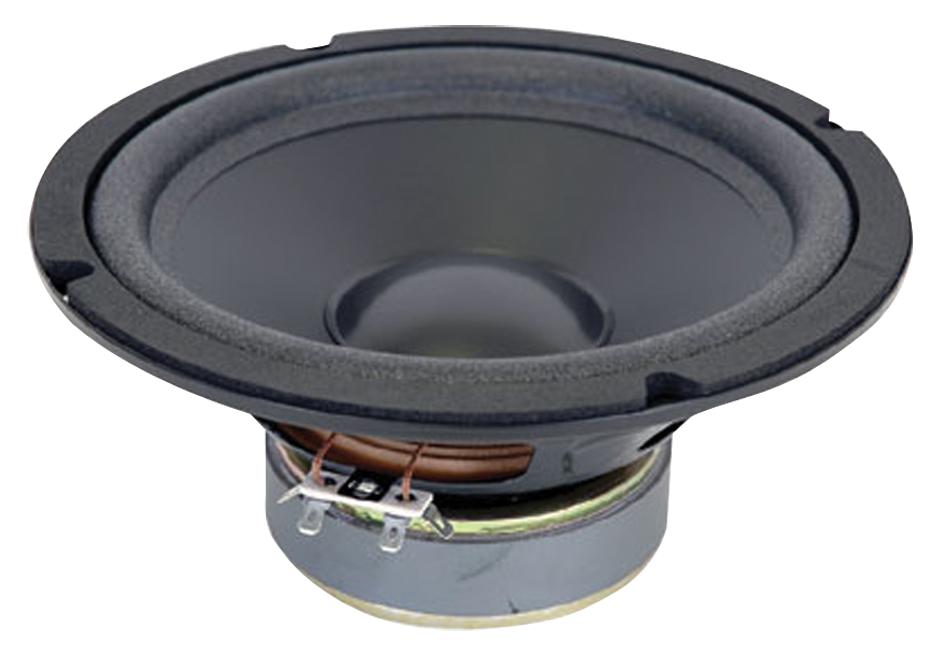

MULTICOMP-PRO 551195 8-Inch Polypropylene Woofer
This 8-inch polypropylene cone woofer is an ideal replacement driver offering strong low-frequency response and reliable power handling. It boasts a 35.5mm aluminium former voice coil, foam surround, stamped steel basket, and a ferrite magnet. Designed for high performance, it can handle up to 80W max input with a sensitivity of 88.2 dB. The driver features a resonance frequency of 49.2Hz, impedance of 8Ω, and a linear Xmax of 3.8mm. Its durable construction makes it suitable for various audio applications requiring clear, powerful bass reproduction.
MULTICOMP-PRO 551195 8-Inch Polypropylene Woofer Specifications:
- Dimensions: 8 inches (205mm), overall frame diameter 8.07 inches, cutout diameter 7.19 inches, mounting depth 3.53 inches
- Impedance: 8Ω
- Max Input Power: 80W
- Free Air Resonance: 49.2Hz
- Sensitivity: 88.2 dB (SB/W/M at 2.83V)
- Frequency Range: FO ~ 4000Hz
- Voice Coil Diameter: 35.5mm, Length: 12.6mm, Layer: 22mm, Former Material: Aluminium (ASV), Wire Material: Copper (SVW)
- Cone Material: Polypropylene, Surround Material: Foam
- Magnet Diameter: 100mm, Height: 20mm, Material: Ferrite, Weight: 503g
- DC Resistance: 6.60Ω, Resonance Frequency: 49.2Hz, Max Impedance: 24.30Ω
- Q Factors: Qms 2.377, Qes 0.905, Qts 0.655, Vas: 32.2 liters
- Linear Displacement (Xmax): 3.8mm, Sensitivity (SPL): 88.2 dB
- Suspension Compliance: 0.508mm/N, Voice Coil Inductance: 1.19mH
Buy the Buy Multicomp Pro 8-Inch Polypropylene Cone Woofer Part Number 55-1195 Online
Order the 8-inch polypropylene cone woofer now from authorized distributors online for fast delivery and competitive pricing. Designed for high-power audio systems, this driver features a durable polypropylene cone, a 35.5mm aluminium former voice coil, foam surround, and a ferrite magnet to deliver excellent bass response. Its impedance of 8Ω, sensitivity of 88.2dB, and Max input power of 80W ensure reliable performance across various applications. Easy to install, it offers a resonance frequency of 49.2Hz and an Xmax of 3.8mm, making it an excellent choice for high-quality sound systems requiring deep, powerful bass. Trust this versatile woofer for replacement or custom speaker builds, ensuring exceptional audio clarity and lasting durability.
Get Multicomp Pro 8-inch polypropylene cone woofer today—built for high power handling, durability, and superior low-frequency performance.
