MULTICOMP PRO 555670 Woofers

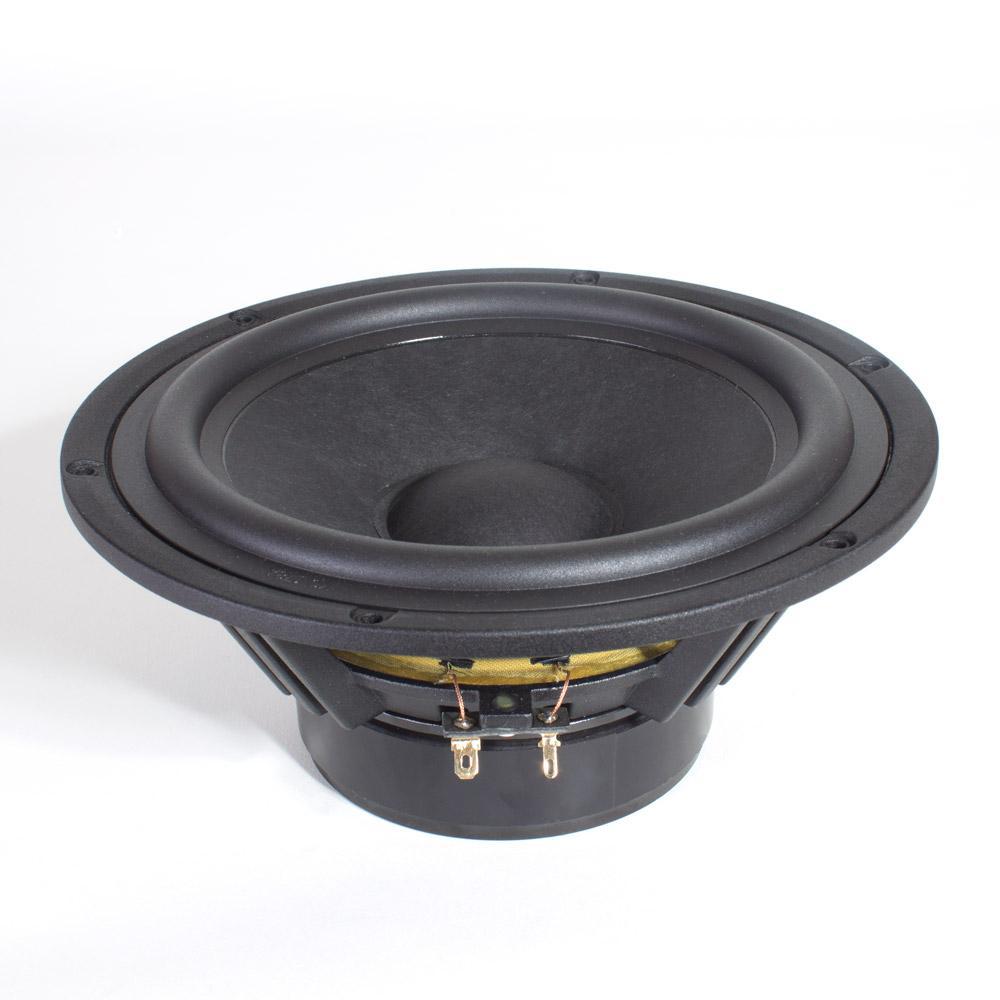

The 8-inch Woofer with paper-Kevlar fibre cone delivers robust sound with durability suitability. Featuring a rubber surround, die-cast aluminium basket, and black aluminium former, it ensures reliable performance. The copper-clad aluminium wire and ferrite magnet optimize magnetic efficiency for high-quality audio output. Key features include an impedance of 8 ohms, resonance frequency of 36.1Hz, linear Xmax of 7.6mm, and a sensitivity of 90dB. Designed for amplifiers and sound systems, this woofer provides powerful bass and clear mids for professional audio applications in a compact size.
MULTICOMP PRO 555670 Woofers Specifications:
- Dimensions: 8" (220mm) outer diameter, 7.68" cut-out diameter, 3.58" mounting depth
- Impedance: 8 ohms, Resistance: 6.5 ohms
- Resonance Frequency: 36.1Hz
- Sensitivity: 90dB (5B)
- Linear Xmax: 7.6mm
- Power Input: Max 80W, Rated 40W, 8 hours life with white noise testing
- Voice Coil Diameter: 38.5mm, Former Material: Black Aluminium (BASV)
- Magnet Diameter: 115mm, Material: Ferrite, Height: 222mm
- Cone Material: Paper + Kevlar fibre
- Surround Material: Rubber
- Basket: Die cast aluminium
- Wire Material: Copper Clad Aluminium (CCAW)
- Dust Cap: Paper with Copper ring
- Resonance Frequency (Fs): 36.1Hz
- Total Q Factor: 0.32
- Magnetic Gap: 6mm
Buy the Multicomp Series Woofer: 8 Inch Paper-Kevlar Cone Speaker 555670
Purchase the Multicomp Series 8 Inch Woofer online today for powerful, clear sound performance ideal for professional audio systems. Designed with a durable paper-Kevlar fibre cone, rubber surround, and high-quality materials, this speaker offers excellent sound clarity and bass depth. The robust magnetic structure, aluminium frame, and copper-clad aluminium wire ensure high efficiency and reliability for long-term use. Perfect for amplifiers and sound setups needing crisp mids and deep bass, available now for quick online orders with fast shipping and trusted quality assurance.
Get Multicomp Series 8 Inch Woofer today—built for high-performance sound and long-lasting durability.
