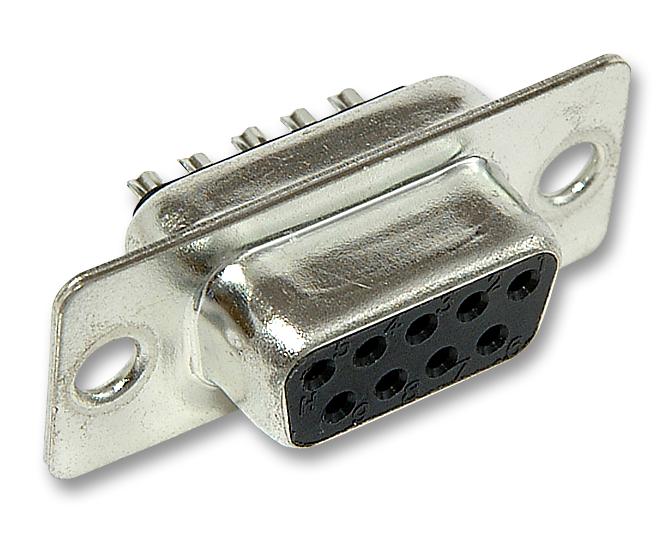

MULTICOMP PRO 698106 EMI/RFI Shielded D-Sub Socket
The Multicomp Pro 698106 is an EMI/RFI shielded D-sub socket connector with 9 positions. It features tin and dimpled shells, nickel-plated solder buckets, and gold-over-nickel plated brass contacts for reliable connectivity. The connector is made from glass fiber reinforced PBT insulation, supports a current rating of 5A at 25°C, and operates within a temperature range of -55°C to 105°C. The shell is constructed from tin-plated steel, making it suitable for industrial applications. Multicomp Pro products are highly rated, with a 4.6 out of 5-star rating, and come with a 12-month limited warranty. Approximately 96% of customers would recommend this product to a friend.
MULTICOMP PRO 698106 EMI/RFI Shielded D-Sub Socket Specifications:
- Current Rating: 5 Amps at 25°C
- Insulation Resistance: 5000MΩ minimum at 500V DC
- Dielectric Withstanding Voltage: AC 1000V minimum for 1 minute
- Contact Resistance: 15mΩ maximum mated
- Operating Temperature: -55°C to +105°C
- Insulator Material: Glass-fiber reinforced PBT
- Contact Material: Brass, Gold over Nickel in contact area, Tin plated solder cup
- Shell Material: Steel, Tin plated
- Working Voltage: 250Vrms
- Dimensions vary by part number, key sizes include 24.99mm to 63.05mm
- Designed for industrial connectors, solder bucket terminations, EMI/RFI shielding, multiple pin configurations
Buy the Buy Multicomp EMI/RFI Shielded D-Sub Socket Part Number 698106 Online
Purchase the Multicomp Pro 698106 EMI/RFI shielded D-sub socket connector online today to enhance your electronic hardware with high-density, durable, and shielded connectivity. Designed for industrial use, this connector supports 5A current, wide temperature operation from -55°C to 105°C, and features corrosion-resistant materials like tin-plated steel and gold-over-nickel plated brass contacts for optimal performance. Its robust construction ensures reliable data transfer and interference protection, making it ideal for applications requiring secure and stable connections. Buy now and benefit from a 12-month warranty and trusted quality.
Order your Multicomp Series698106 EMI/RFI shielded D-sub socket today and ensure your electronic assemblies are reliable and industry-grade.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 698106?
You can click on the BUY or RFQ button to purchase 698106 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 698106?
You can download the 698106 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 698106?
MULTICOMP PRO
