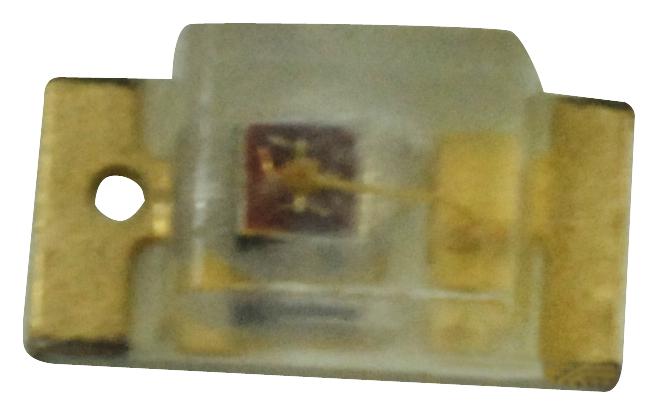

MULTICOMP PRO 7030069 High-Brightness SMD LED
The OVS-0608 is a high-brightness surface-mount device (SMD) LED with a water-clear lens and an A1GallnP/Si chip, designed for industrial and electronic applications. Its small 0603 footprint provides a wide 140° viewing angle, making it suitable for compact, high-visibility lighting. Operating at 5V, it supports a forward current of 30mA and pulse currents up to 80mA, with a temperature range from -30°C to 80°C. The LED features low reverse voltage (<5V) and reflow soldering compatibility at 260°C for 10 seconds, ensuring reliable mounting and performance.
MULTICOMP PRO 7030069 High-Brightness SMD LED Specifications:
- Package: 0603 SMD footprint
- Material: A1GallnP/Si chip with water-clear lens
- Color: White, Blue, Green, Yellow, Red
- Wavelength: 465 nm (Blue), 520 nm (Green), 589 nm (Yellow), 625 nm (Red)
- Luminous Intensity: 100 mCd (typical), 165 mCd (max)
- Forward Voltage: 3.2V (typical) at 20mA
- Forward Current: 30mA (DC), 80mA (pulse)
- Reverse Voltage: <5V
- Operating Temperature Range: -30°C to +80°C
- Storage Temperature Range: -40°C to +85°C
- Reflow Soldering Temperature: 260°C for 10s
- Viewing Angle: 140 degrees
- Dimensions: 1.6 mm x 0.8 mm (typical)
- Radiation Pattern: Wide-angle emission
- Certifications: Compliant with industry standards
Buy the Multicomp Series OVS-0608 High-Brightness SMD LED: 7030069
Discover the reliable and efficient Multicomp Series OVS-0608 high-brightness SMD LED, perfect for industrial and electronic applications. Featuring a water-clear lens, wide 140° viewing angle, and a compact 0603 footprint, this LED delivers excellent illumination with a typical forward voltage of 3.2V at 20mA and supports pulse currents up to 80mA. Operating from -30°C to +80°C, it is suitable for various environmental conditions. Reflow soldering at 260°C ensures easy assembly, making it ideal for your manufacturing needs.
Order your Multicomp Series OVS-0608 high-brightness SMD LED today and enhance your electronic projects with reliable, compact illumination.
