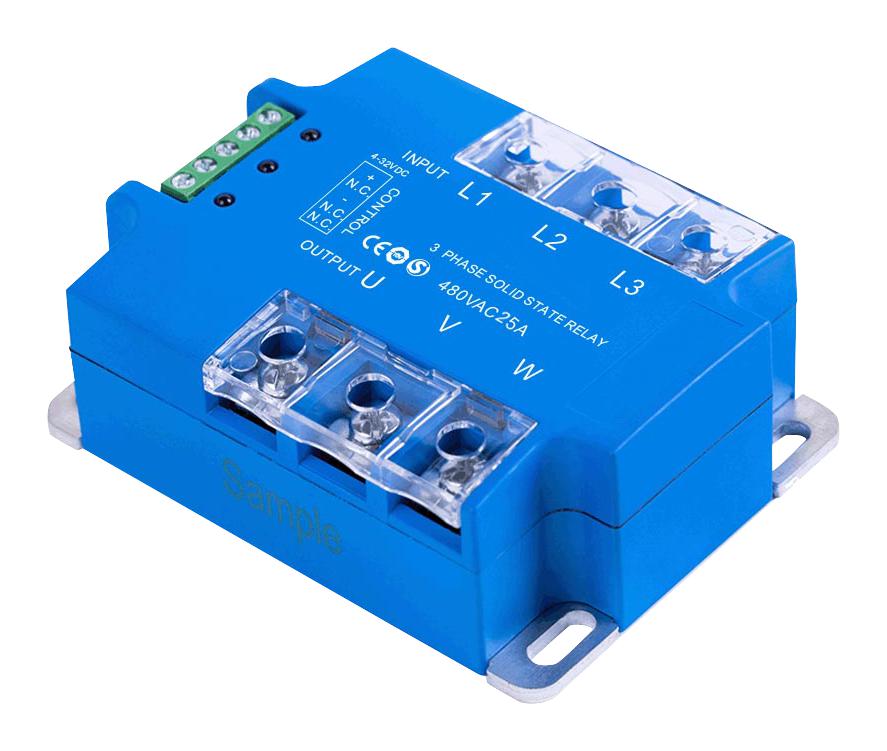

MULTICOMP-PRO MCKSQF480D25 Three-phase AC Solid State Relay
This three-phase AC solid state relay from multicomp Pro features SCR output and zero-crossing switching, suitable for motor control and heating systems. It operates with control voltages from 4 to 32V DC, handling load currents of 25A or 60A at load voltages from 24 to 660V AC, with a load voltage range of 124 to 530V AC. The relay offers high dielectric strength of over 4000Vrms between input and output, and 2500Vrms input/output. Designed for reliable operation, it is ideal for industrial applications such as large oven control, kiln temperature regulation, and motor switching, with destructive transient overvoltage protection and opto-isolation.
MULTICOMP-PRO MCKSQF480D25 Three-phase AC Solid State Relay Specifications:
- Control Voltage Range: 4V DC to 32V DC
- Min. Turn-On Voltage: 4V DC
- Min. Turn-Off Voltage: 1V DC
- Max. Reverse Voltage: 32V DC
- Max. Input Current: 35mA @ 32V DC
- Load Voltage Range: 124 ~ 530V AC
- Rated Load Current: 25A and 60A
- Max. Turn-on Time: 10ms
- Max. Turn-off Time: 10ms
- Max. Surge Current: 25A - 300A, 60A - 1000A
- Transient Over Voltage: 1200Vpk
- Dielectric Strength: >4000Vrms (Input/Output), >2500Vrms (Input, Output/Base)
- Ambient Operating Temperature: -30°C to +80°C
- Weight: 385g for 25A, 520g for 60A
- Dimensions: Millimetres
- Off-State Leakage Current: 5mA at rated voltage
- On-State Voltage Drop: 1.6Vrms at rated current
Buy the Buy multicomp Pro Solid State Relay Part Number MCKSQF480D25 Online
Explore the high-performance multicomp Pro three-phase AC solid state relay with SCR output, handling loads up to 60A at 530V AC. Featuring zero-crossing switching, high dielectric strength, and MOV protection, this relay ensures reliable operation for motor control, kiln heating, and large oven systems. Compact, with quick switching times of 10ms, it provides perfect protection and isolation for industrial automation applications. Order online today and enhance your system's efficiency with our proven, top-quality relay solution.
Buy multicomp Pro MCKSQF480D25 now and experience unmatched reliability and performance in industrial motor and heating control.
