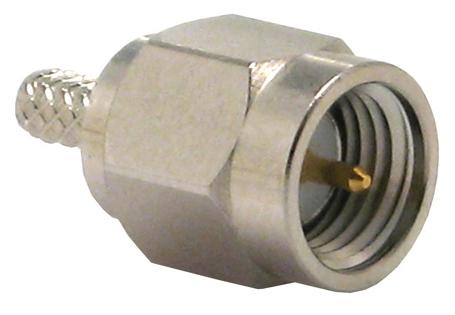

MULTICOMP PRO 85890834 RF Coaxial Connector
The SMA Male Crimp connector is a high-quality coaxial connector designed for reliable RF signal transmission. It features a straight plug body style crafted from brass with nickel plating for durability and excellent conductivity. The connector accommodates various coaxial cable types including RG55, RG5SA, RG142, and RG223, supporting impedance of 50 ohms. It handles a maximum working voltage of 500V peak at sea level and maintains low VSWR levels, specifically less than 2dB at 6 GHz, ensuring minimal signal loss across frequencies. Ideal for RF applications requiring secure, high-frequency connections with precision-engineered parts like PTFE dielectric and brass components.
MULTICOMP PRO 85890834 RF Coaxial Connector Specifications:
- Connector Type: SMA Coaxial
- Connector Body Style: Straight Plug
- Coaxial Termination: Crimp
- Impedance: 50 ohms
- Working Voltage: 500V Peak @ Sea Level
- Frequency Range: Supports up to 12 GHz
- Vswr Max.: <2dB @ 6 GHz, 1.3:1 @ 12 GHz
- Coaxial Cable Types: RG55, RG5SA, RGS5B, RG142, RG142A, RG142B, RG223
- Body Material: Brass with Nickel plating
- Dielectric Material: PTFE
- Gasket: Silicone Rubber Bright Orange
- Retaining Ring: Beryllium Copper
- Shell and Ferrule Material: Brass Nickel
- Dimensions: Hex 0.315 inches (8.00 mm), length approximately 2.187 inches (55.45 mm)
Buy the Buy Multicomp SMA Male Crimp Part Number 85890834 Online
Purchase the Multicomp SMA Male Crimp connector online today for reliable RF signal transmission, high durability, and precision engineering. Designed with brass components and PTFE dielectric, it supports frequencies up to 12 GHz, with low VSWR levels for minimal signal loss. The connector's robust construction ensures long-lasting performance in various RF applications. Compatible with multiple coaxial cable types including RG55 and RG142, it features a secure crimp termination, making it ideal for professional-grade systems requiring high frequency accuracy and stable connections. Buy now to enhance your RF projects with proven quality.
Get Multicomp SMA Male Crimp connector today—built for high-frequency RF applications, durability, and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 85890834?
You can click on the BUY or RFQ button to purchase 85890834 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 85890834?
You can download the 85890834 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 85890834?
MULTICOMP PRO
