MULTICOMP-PRO ABI02812RC Electro-Mechanical Signaling Device
This electro-mechanical indicator features a 12V DC surface mount design, with a black ABS housing, continuous tone output, and resonant frequency of 400Hz ±100Hz. It operates between 9 to 15V DC, consumes less than 30mA current, and emits a 75dB sound level at 20cm. The device is suitable for applications requiring reliable signaling, with operating temperature range from -10°C to +60°C, and includes 120mm UL-listed UL1095 AWG26 lead wire for easy installation. Its compact size and durable design ensure long-lasting, consistent performance in industrial or electronic systems.
MULTICOMP-PRO ABI02812RC Electro-Mechanical Signaling Device Specifications:
- Rated Voltage: 12V DC
- Operating Voltage: 9 ~ 15V DC
- Rated Current: <30mA
- Sound Output level @ 20cm: 75dB
- Resonant Frequency: 400Hz +100Hz
- Tone: Continuous
- Housing Material: Black ABS
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -30°C to +70°C
- Lead Wire: UL1095 AWG26, 120mm length
- Weight: 10g
- Dimensions: 17mm x 15.5mm flange, lead length 120mm
- Tolerance: +0.5mm

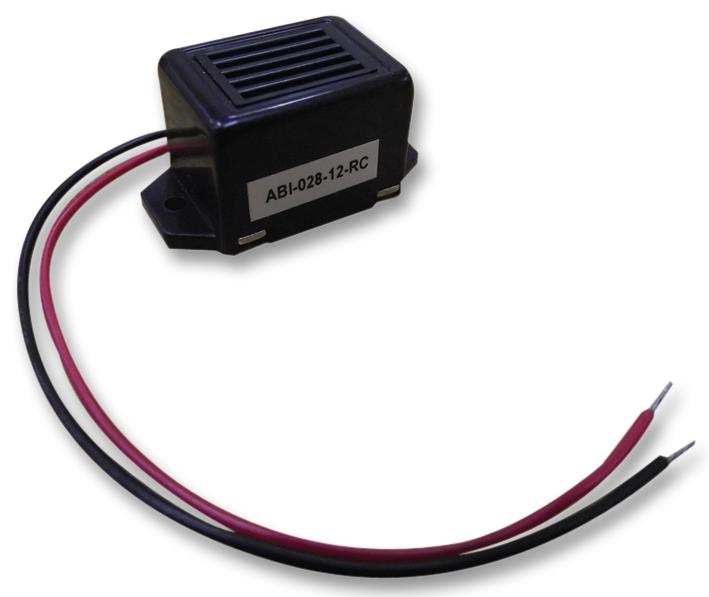

Buy the Multicomp Series Indicator: ABI-028-12-RC
Order the Multicomp ABI-028-12-RC electro-mechanical signaling device online today to ensure dependable performance in your industrial or electronic systems. This compact indicator features a high output level of 75dB at 20cm, operates within a 9 to 15V DC range, and is housed in a robust black ABS shell. Its continuous tone and UL-listed lead wires make it easy to install, while its wide operating temperature range guarantees durability under various conditions. Enhance your signaling reliability by purchasing online now and enjoy swift shipping and competitive prices.
Buy Multicomp ABI-028-12-RC now and experience reliable signaling with durable construction and easy installation for industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO ABI02812RC?
You can click on the BUY or RFQ button to purchase ABI02812RC from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part ABI02812RC?
You can download the ABI02812RC datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of ABI02812RC?
MULTICOMP-PRO
