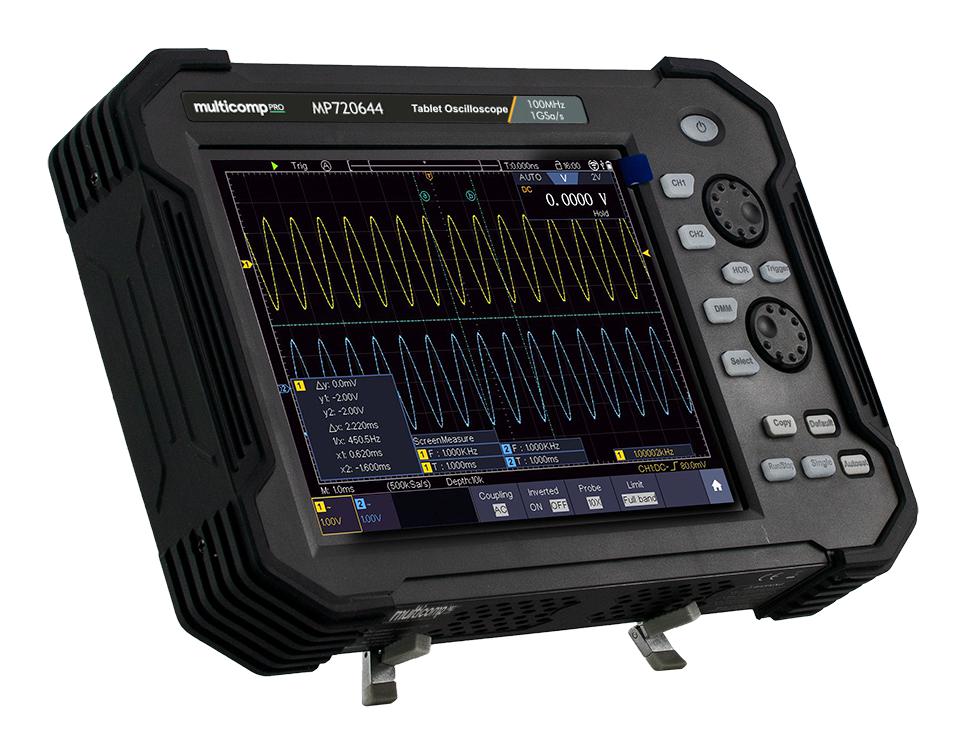

MULTICOMP PRO MP720644US Digital Storage Oscilloscope
The Multicomp Pro MP720644 is a versatile two-channel digital storage oscilloscope with integrated multimeter functions, featuring 100 MHz bandwidth and real-time sampling at 1 GS/s. It boasts an 8-inch multi-touch LCD display with 800 x 600 resolution, a 40 M record length, and waveform refresh rate of 45,000 wfms/sec for precise small signal testing. Supporting multiple input coupling modes, advanced triggering, and bus decoding protocols like I2C, SPI, RS232, and CAN, it’s ideal for electronics testing, repair, and educational use. Compact and battery-powered, it combines portability with high performance and connectivity options such as USB and LAN interfaces.
MULTICOMP PRO MP720644US Digital Storage Oscilloscope Specifications:
- Bandwidth: 100 MHz
- Sample Rate (real-time): 1 GS/s
- Vertical Resolution: 8 bits
- Record Length: 40 M
- Waveform Refresh Rate: 45,000 wfms/sec
- Display: 8-inch (800 x 600) multi-touch TFT LCD
- Input Impedance: 1 MΩ ± 2%, in parallel with 15 pF ± 5 pF
- Max Input Voltage: 300 Vrms
- Probe Attenuation: 0.001X - 1000X, step 1-2-5
- Input Coupling: DC, AC, GND
- Vertical Sensitivity: 1 mV/div to 10 V/div
- Horizontal Scale: 1 ns/div to 1000 s/div
- Trigger Modes: Auto, Normal, Single
- Bus Decoding: I2C, SPI, RS232, CAN (optional)
- Waveform Storage: 100 waveforms
- Communication Interfaces: USB, LAN
- Power Supply: 7.4V, 8000mAh battery
- Dimensions: 270mm x 191mm x 48mm
- Weight: About 1.7 kg
Buy the Buy Multicomp Oscilloscope Part Number MP720644 Online
Purchase the Multicomp Pro MP720644 digital storage oscilloscope online today to enjoy unmatched precision in electronic testing. This portable 2-channel device combines high bandwidth with advanced triggering, waveform storage, and bus decoding capabilities for comprehensive analysis. Its 8-inch multi-touch display, real-time sampling of 1 GS/s, and multiple communication interfaces make it perfect for labs, fieldwork, or educational environments. Secure your measurement needs with a reliable tool that offers exceptional performance and ease of use, delivered directly to your door.
Buy Multicomp MP720644 now and experience reliable high-speed signal analysis with comprehensive Bluetooth, LAN, and USB connectivity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP720644US?
You can click on the BUY or RFQ button to purchase MP720644US from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP720644US?
You can download the MP720644US datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP720644US?
MULTICOMP PRO
