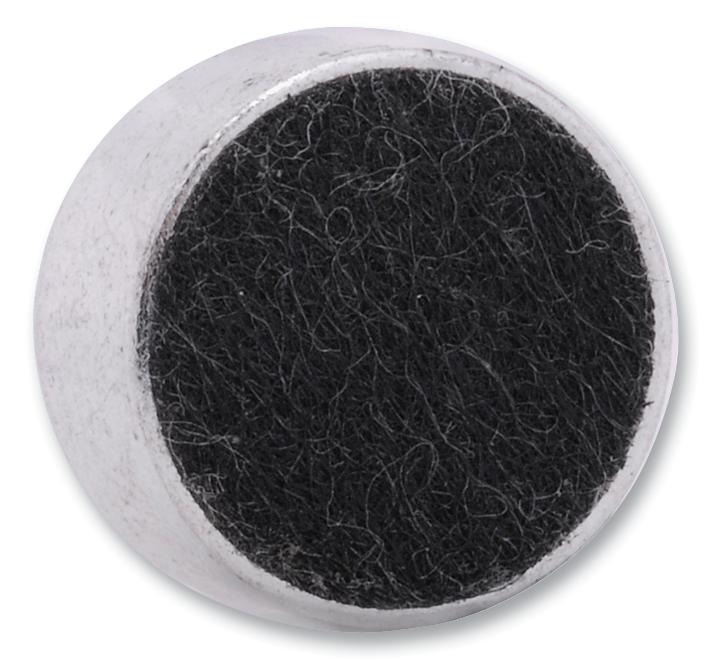

MULTICOMP PRO ABM709RC Directional Microphone
This directional microphone features solder pad mounting and operates within 2V to 10V voltage range, with a maximum current of 0.5mA. It offers a frequency response from 100 to 10,000Hz, sensitivity of -47 ±3dB at 1KHz, and a signal-to-noise ratio exceeding 58dB. Designed for high-quality audio applications, this RoHS-compliant unit boasts impedance below 2.2kΩ and dimensions of approximately 6mm, making it ideal for compact, sensitive microphone projects and electronic device integrations requiring reliable sound capture and minimal noise interference.
MULTICOMP PRO ABM709RC Directional Microphone Specifications:
- Directivity: Unit directional
- Standard operating voltage: 2V
- Maximum operating voltage: 10V
- Maximum current consumption: 0.5mA
- Output impedance: less than 2.2kΩ at 1KHz 1Pa
- Frequency response: 100 to 10,000Hz
- Sensitivity: -47 ±3dB at 1KHz, 0dB=1V/Pa
- Signal-to-noise ratio: >58dB (weighted at 1KHz 1Pa)
- Dimensions: Approximate 6mm in diameter, with tolerance +0.2mm
- RoHS compliant
- Suitable for electronic and audio projects requiring sensitive sound capture
Buy the Buy Multicomp Microphone Part Number ABM709RC Online
Purchase your Multicomp directional microphone ABM709RC online today. Designed with solder pad mounting, it offers a wide frequency response, high sensitivity, and low noise ratio for professional audio and electronic applications. Its compact size of approximately 6mm diameter makes it ideal for space-constrained projects. Enjoy fast delivery, competitive pricing, and trusted quality by ordering online now. Enhance your audio systems with this RoHS-compliant microphone to ensure clear sound capture and minimal interference in your devices and projects.
Order your Multicomp Series ABM709RC microphone today and ensure your audio projects benefit from high sensitivity and reliable noise performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ABM709RC?
You can click on the BUY or RFQ button to purchase ABM709RC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ABM709RC?
You can download the ABM709RC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ABM709RC?
MULTICOMP PRO
