MULTICOMP PRO ABM710RC Microphone

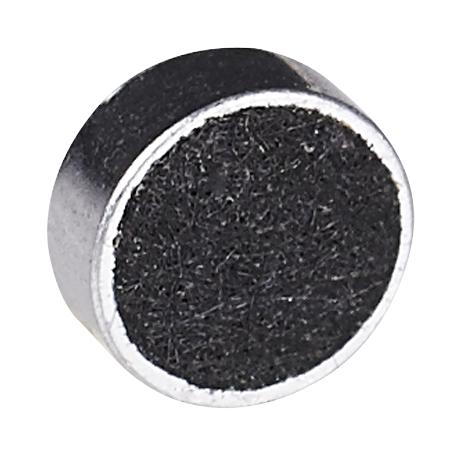

The ABM-710-RC is a noise-cancelling, directivity microphone with solder pad connections. It operates on a standard voltage of 2V with a maximum of 10V and consumes 0.5mA current. Covering a frequency range of 50 to 16,000Hz, it offers a signal-to-noise ratio of over 58dB at 1KHz. Its low output impedance of less than 2.2kΩ ensures clear audio recordings. Suitable for professional audio and communication applications, it features RoHS compliance and reliable performance in various environments.
MULTICOMP PRO ABM710RC Microphone Specifications:
- Directivity: Noise cancelling
- Standard operating voltage: 2V
- Maximum operating voltage: 10V
- Maximum current consumption: 0.5mA
- Output impedance (F=1KHz 1Pa): <2.2kΩ
- Frequency range: 50 to 16,000Hz
- Sensitivity (F=1KHz, 0dB=1V/Pa): -46 +3dB
- Signal-to-noise ratio (1KHz, 1Pa): >58dB
- RoHS Compliant
Buy the Buy Multicomp Microphone Part Number ABM710RC Online
Purchase the Multicomp ABM710RC microphone online today to enhance audio clarity with advanced noise-cancelling technology. Its solder pad design makes installation straightforward, while its frequency range of 50 to 16,000Hz ensures versatile applications. Operating at 2V with a maximum of 10V and consuming only 0.5mA, this RoHS-compliant microphone offers excellent signal-to-noise ratio and low output impedance for professional audio, communication devices, and recording equipment. Experience high-quality sound acquisition, durability, and ease of integration by ordering now.
Buy Multicomp ABM710RC microphone now and ensure high-quality audio with noise-cancelling performance and reliable solder pad connectivity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ABM710RC?
You can click on the BUY or RFQ button to purchase ABM710RC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ABM710RC?
You can download the ABM710RC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ABM710RC?
MULTICOMP PRO
