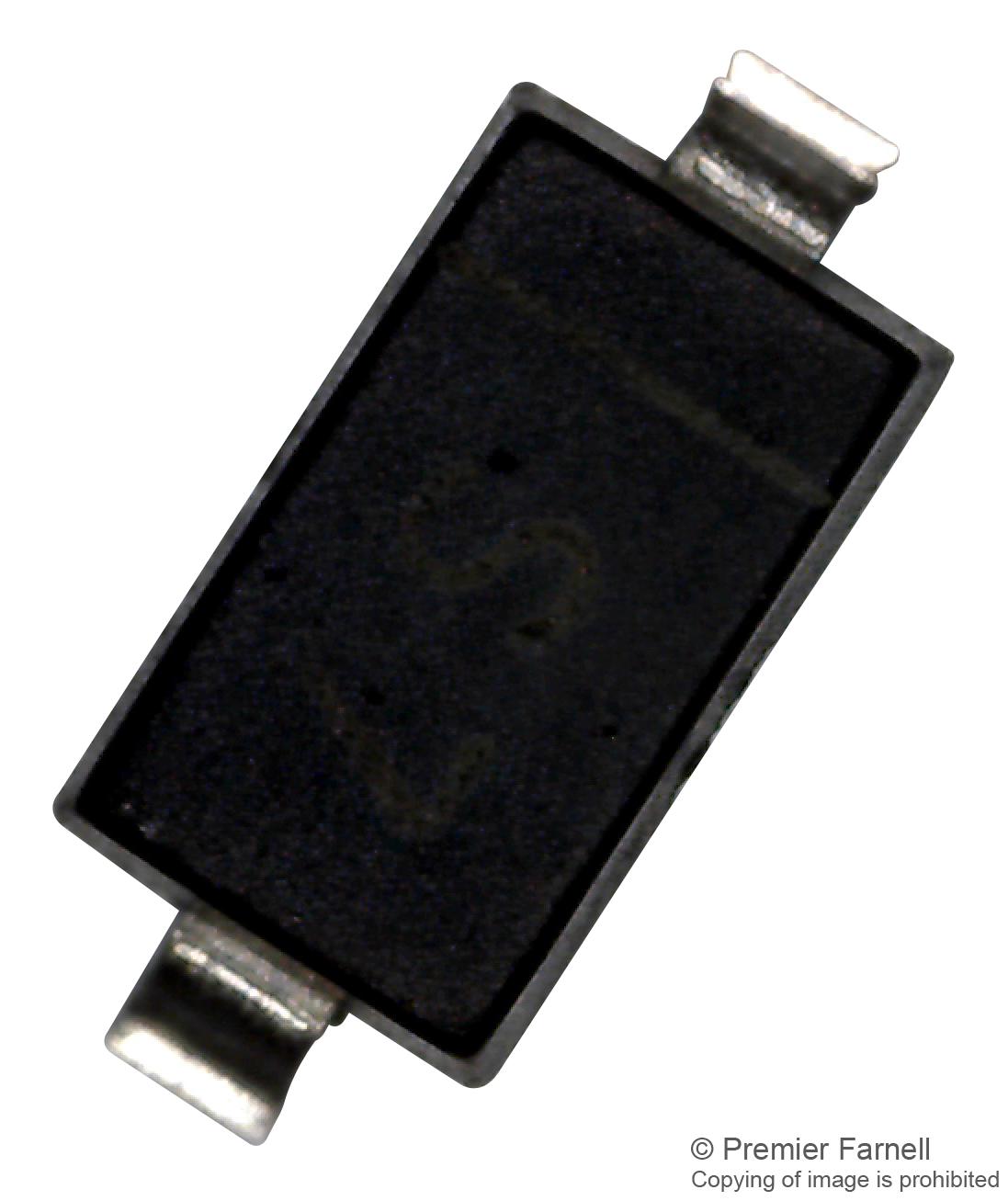

MULTICOMP PRO BAT42W Schottky Diode
This surface mount Schottky barrier rectifier offers low forward voltage drop and fast switching capabilities, making it ideal for high-frequency and power applications. With a maximum reverse voltage of 30 V and a forward current of 200 mA, it provides reliable performance in compact designs. Its high operating temperature range from -55°C to +125°C ensures durability across various environments. The diode features a low leakage current, small capacitance, and minimal reverse recovery time, suitable for efficient, space-saving electronic circuits in industrial and consumer electronics.
MULTICOMP PRO BAT42W Schottky Diode Specifications:
- Repetitive Peak Reverse Voltage VRRM: 30 V
- Reverse Voltage VR: 30 V
- Forward Continuous Current IF: 200 mA
- Repetitive Peak Forward Current IFRM: 500 mA
- Surge Forward Current: 2 A
- Power Dissipation: 200 mW
- Thermal Resistance Junction to Ambient Air: 500 °C/W
- Operating Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Reverse Breakdown Voltage: 30 V
- Forward Voltage at 200mA: 0.4 V
- Leakage Current at 25V: 0.5 pA
- Capacitance at 1MHz: 10 pF
- Reverse Recovery Time: 5 ns
- Dimensions (mm): 3.55 x 0.90 x 1.70, with small SOD-123 package features.
Buy the Multicomp Pro BAT42W+ – Reliable Schottky Barrier Rectifier for Industrial Applications
Purchase the Multicomp Pro BAT42W+ Schottky diode online today and enjoy efficient power rectification with low forward voltage and fast switching capabilities. Its compact SOD-123 package ensures space-saving design for various industrial and consumer electronic applications. Featuring a high maximum reverse voltage of 30 V and a forward current of 200 mA, this diode provides reliable performance across a broad temperature range from -55°C to +125°C. Ideal for high-frequency circuits, it ensures minimal power loss, quick recovery times, and robust durability for demanding electronic systems.
Buy Multicomp Pro BAT42W+ Schottky diode now and experience reliable fast switching and low forward voltage performance for your industrial and electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO BAT42W?
You can click on the BUY or RFQ button to purchase BAT42W from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part BAT42W?
You can download the BAT42W datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of BAT42W?
MULTICOMP PRO
