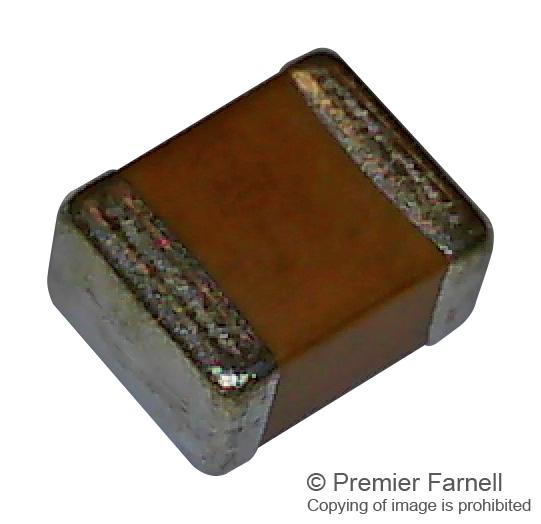

MULTICOMP PRO MC1812N101J102CT High Voltage Ceramic Capacitors
High-voltage multilayer ceramic capacitors designed for applications requiring reliable performance across wide voltage ranges from 200V to 3kV. Made with NPO, X7R, and Y5V dielectrics, these capacitors feature special internal electrode patterns that reduce voltage concentration, thereby increasing stability, reliability, and capacitance in compact cases. Suitable for high-frequency snubbers, DC coupling, DC-DC converters, and back-lighting inverters. Available in various sizes including 1206 and larger, with RoHS compliance and reflow soldering suitability, these capacitors are essential for advanced power and electronic circuits demanding high voltage endurance.
MULTICOMP PRO MC1812N101J102CT High Voltage Ceramic Capacitors Specifications:
- Capacitance range: 0.5pF to 8.2μF depending on dielectric type
- Rated Voltage: 200V to 3kV with various voltage options per size and dielectric
- Size options: 0603, 0805, 1206, 1210, 1808, 1812
- Dielectrics: NPO, X7R, Y5V with temperature ratings from -55°C to +125°C, -25°C to +85°C, and characteristic capacitance tolerances
- Termination: Ni/Sn (lead-free) and partially with Ag/Ni/Sn options, suitable for reflow soldering
- Physical dimensions vary by size, typically including length, width, and thickness specifications such as 1206: 3.2mm x 1.6mm x 0.8mm
- Capacitance tolerance: ±10%, ±20%, ±30% depending on dielectric and capacitance value
- Environmental & reliability tests: temperature cycling, humidity, solderability, vibration, and mechanical stress testing
- Compliance: RoHS, suited for high-frequency power circuits and high-voltage applications
- Construction: Ceramic dielectric layers with internal electrodes and robust external terminations
Buy the Multicomp Series High Voltage Capacitors: MC1812N101J102CT
Order Multicomp high voltage ceramic capacitors online now. Designed for reliability and stability in demanding applications like power supplies, DC-DC converters, and high-frequency filters. These capacitors offer excellent performance across wide voltage ranges up to 3kV with various dielectric options including NPO, X7R, and Y5V. Compact sizes, RoHS compliance, and suitability for reflow soldering ensure seamless integration into your electronic projects. Enhance your circuit's performance by purchasing these durable, high-quality capacitors today for fast delivery and competitive prices.
Get Multicomp high voltage capacitors today—built for precision and long-lasting durability in power and electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC1812N101J102CT?
You can click on the BUY or RFQ button to purchase MC1812N101J102CT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC1812N101J102CT?
You can download the MC1812N101J102CT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC1812N101J102CT?
MULTICOMP PRO
