A Premier B2B Part Search

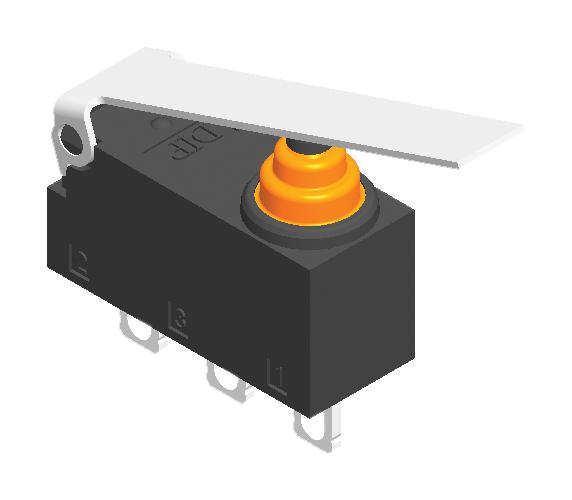

MULTICOMP PRO MP006221 Industrial Microswitch
These reliable snap action microswitches are designed for industrial automation, household appliances, and automotive applications. Featuring various actuator options such as pin plungers, long hinge levers, and simulated roller levers, they offer high durability with mechanical life exceeding 1,000,000 cycles and electrical durability over 100,000 cycles. They operate efficiently across a temperature range of -40°C to +85°C, with sealed IP67 protection. Suitable for through-hole and PC board mounting, these switches provide precise switching with force ratings up to 75gf and contact ratings up to 2A at 12V DC, making them ideal for demanding industrial and consumer applications.
MULTICOMP PRO MP006221 Industrial Microswitch Specifications:
- Contact Rating: 2A at 12V DC / 1A at 24V DC
- Mechanical Durability: 1,000,000 Cycles Min.
- Electrical Durability: 100,000 cycles Min.
- Contact Resistance: 150mΩ Max.
- Insulation Resistance: 100MΩ Min. (at 500V DC)
- Dielectric Strength: 600V AC between same polarity, 1500V AC to ground
- Operating Temperature: -40°C to +85°C
- Actuator options: Pin Plunger, Long Hinge Lever, Simulated Roller Lever
- Housing: Sealed IP67
- Mounting: Through-hole, PCB terminal options
- Force Ratings: 50-122 gf max., Release force min. 3-10 gf
- Overtravel: 1.4mm to 2.5mm
- Travel: 5.1mm to 41mm depending on model
- Contact Form: SPDT (Single Pole Double Throw)
Buy the Multicomp Pro MP006221 – Reliable Microswitch for Industrial Applications
Purchase your Multicomp Pro MP006221 microswitch online today and benefit from high durability, precise switching, and versatile actuator options. Designed for demanding industrial, automotive, and household applications, this sealed IP67 switch guarantees consistent operation across a temperature range of -40°C to +85°C. With ratings up to 2A at 12V DC and a long mechanical lifespan exceeding 1,000,000 cycles, it’s the perfect choice to enhance your automation systems and electronic devices. Order now and improve your projects’ reliability.
Order your Multicomp Pro MP006221 microswitch today and ensure dependable performance for your automation and household projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006221?
You can click on the BUY or RFQ button to purchase MP006221 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006221?
You can download the MP006221 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006221?
MULTICOMP PRO
