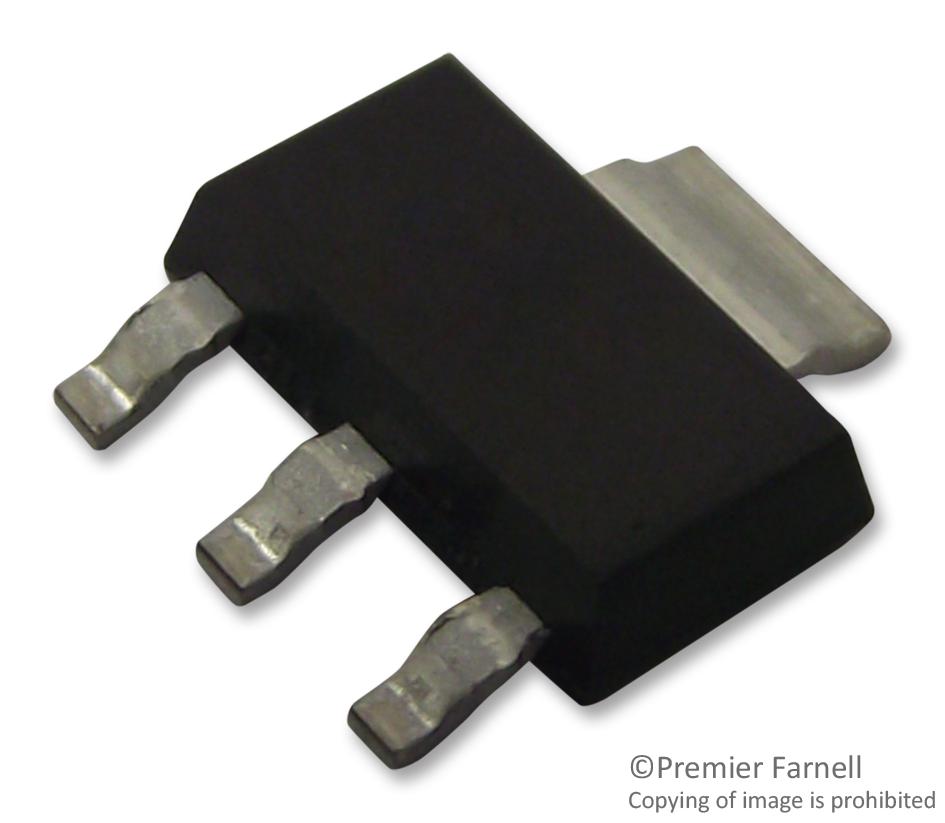

MULTICOMP PRO BCX5616 NPN Silicon Transistor
The NPN silicon transistor is suitable for AF driver and output stages with high collector current and low saturation voltage, ideal for audio and signal applications. It features a plastic surface-mounted package, with a collector-emitter voltage up to 80V depending on the model, and a maximum collector current of 1A. The device offers high DC current gain, with typical values between 63 and 160, and transitions at 20MHz, making it well-suited for switching, amplification, and high-frequency applications. It operates over a temperature range from -65°C to +150°C, with a power dissipation of 500mW.
MULTICOMP PRO BCX5616 NPN Silicon Transistor Specifications:
- Collector-Base Voltage: 45V to 100V depending on model
- Collector-Emitter Voltage: up to 80V
- Emitter-Base Voltage: 5V
- Collector Current (Continuous): 1A
- Peak Collector Current: 1.5A
- Base Current: 100mA
- Peak Base Current: 200mA
- Total Power Dissipation: 500mW
- Transition Frequency: 20MHz
- Operating Temperature Range: -65°C to +150°C
- Package: SOT-89 plastic surface-mounted
- DC Current Gain (hFE): 63 to 160 typical
- Collector-Emitter Saturation Voltage: 0.5V at 500mA
- Base-Emitter Saturation Voltage: 1V at 500mA
Buy the Multicomp Series AF Transistor: BCX5616
Purchase the Multicomp Series BCX5616 NPN silicon transistor online now to benefit from high current capacity, low saturation voltage, and wide temperature operation. This reliable component features a compact SOT-89 package and is suitable for audio, switching, and high-frequency applications. With a maximum collector current of 1A and a transition frequency of 20MHz, it enables efficient circuit performance and durability in various electronic designs. Shop online today for quick delivery and expert support.
Order your Multicomp Series BCX5616 high-performance NPN silicon transistor today and ensure reliable operation in audio, switching, and high-frequency circuits.
