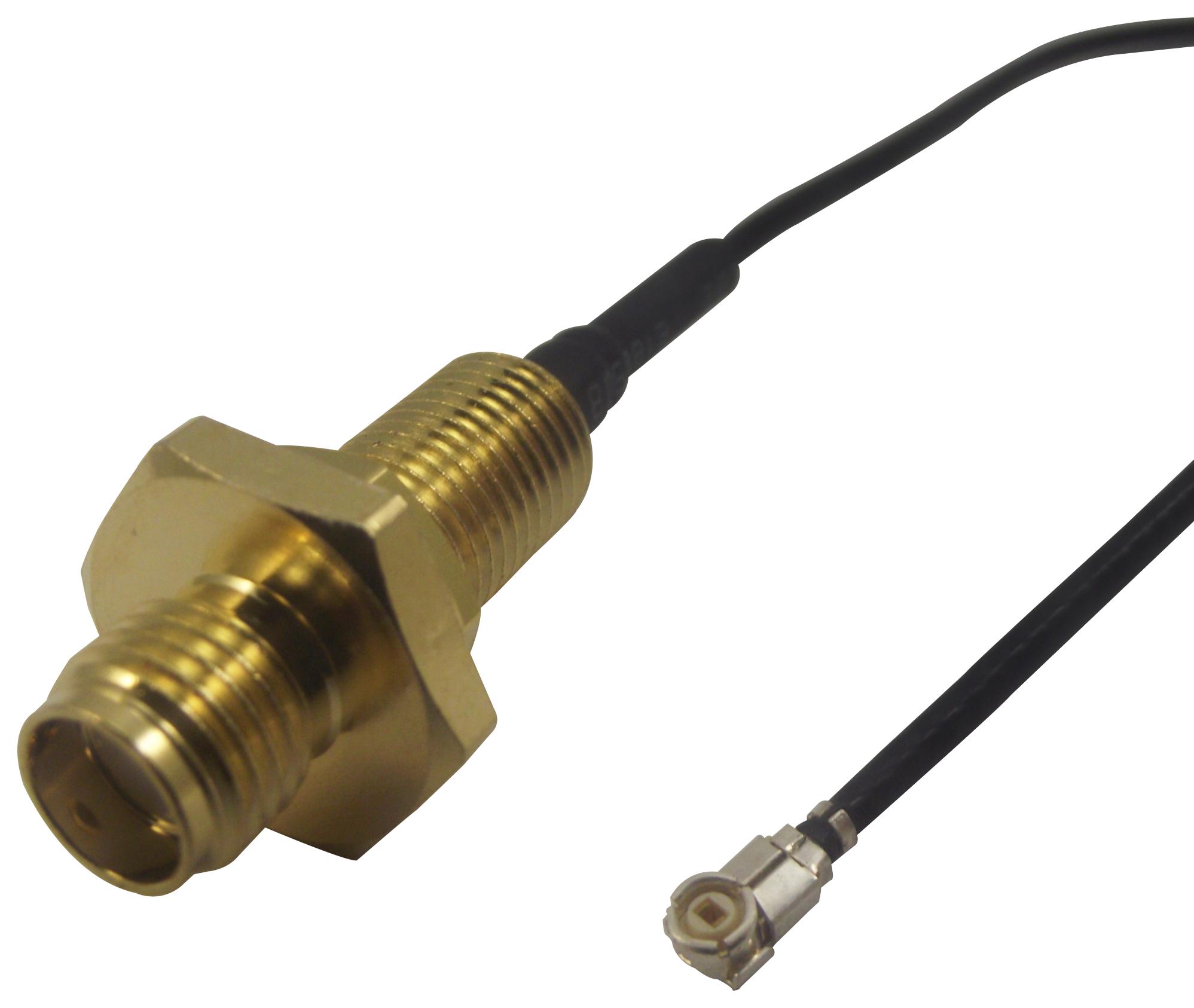

MULTICOMP PRO MC000795 RF Cable Assembly
The MC000795 is a 100mm outdoor RF coaxial cable assembly with an IP67 rating, featuring a durable black sheath, SMA rear lock bulkhead connector, and a 1.37mm U.FL plug. Designed for reliable outdoor RF communication, it operates from DC to 3 GHz, with a characteristic impedance of 50Ω, maximum working voltage of 60Vrms, dielectric withstand voltage of 200Vrms, and insulator resistance of 500MΩ. The assembly offers low insertion loss of -0.7dB, VSWR max 1.4:1, and stable performance across -20°C to +70°C temperature range, ensuring optimal signal integrity in harsh environments.
MULTICOMP PRO MC000795 RF Cable Assembly Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 3GHz
- Working Voltage: 60Vrms Max.
- Dielectric Withstanding Voltage: 200Vrms Min.
- Insulator Resistance: 500MΩ Min.
- Cable Length: 100mm
- Connector Type: SMA (rear lock) B/H, U.FL-LP-088
- Connector Material: Nickel-plated, halogen-free shell
- Sheath Material: Black PVC
- VSWR: Max 1.4:1
- Insertion Loss: Max -0.7dB
- Temperature Range: -20°C to +70°C
- IP Rating: IP67
- Suitable for outdoor RF communication, high-frequency signal transmission, and secure connections.
Buy the Multicomp Series RF Cable Assembly: IP67 SMA U.FL MC000795
Order the Multicomp MC000795 outdoor RF cable assembly online today to ensure your RF communication system performs reliably in harsh environments. This IP67-rated cable features a durable black sheath, high-quality SMA bulkhead connector, and a 1.37mm U.FL plug, providing excellent low-loss signal transmission from DC to 3 GHz. Its robust construction and weatherproofing make it ideal for outdoor applications, supporting maximum voltage, low VSWR, and stable performance. Purchase now for dependable connectivity in any outdoor setup and enjoy fast, secure online delivery.
Buy Multicomp MC000795 outdoor RF coaxial cable assembly now and experience reliable outdoor signal transmission with low loss and robust construction.
