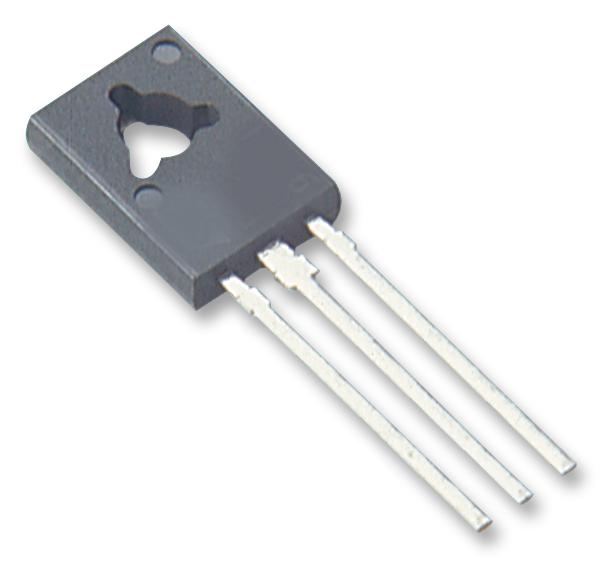

MULTICOMP PRO BD136 PNP Power Transistor
The BD136 is a -45V PNP plastic power transistor suitable for medium power linear and switching applications. It features a collector-base voltage of 45V and an emitter-base voltage of 5V. With a collector current of 1.5A and total power dissipation up to 12.5W, it is ideal for industrial use. The transistor operates with a junction temperature of 150°C, and has a DC current gain ranging from 40 to 250. Its compact TO-126 package makes it suitable for various linear or switching circuits requiring reliable performance and high current handling capacity.
MULTICOMP PRO BD136 PNP Power Transistor Specifications:
- Collector-Base Voltage: 45V
- Collector Emitter Voltage: 45V
- Emitter-Base Voltage: 5V
- Collector Current: 1.5A
- Total Power Dissipation: 12.5W at 25°C
- Junction Temperature: 150°C
- Storage Temperature Range: -65°C to +150°C
- Thermal Resistance (Junction to Case): 10°C/W
- Thermal Resistance (Junction to Ambient): 100°C/W
- Collector Cut off Current: 0.4mA at 30V
- Base-Emitter On Voltage: 0.5V at 0.5A, 2V Vge
- DC Current Gain: 40 min, 250 max (at 25°C and 2V base)
- Package: TO-126
- Pin Configuration: 1. Emitter, 2. Collector, 3. Base
- Dimensions (mm): Be A 74–78, B 10.5–10.8, C 24–27, D 0.7–0.9, E 2.25, F 0.49–0.75, G 4.5, L 15.7, M 1.27, N 3.75, P 3.2, S 2.5
