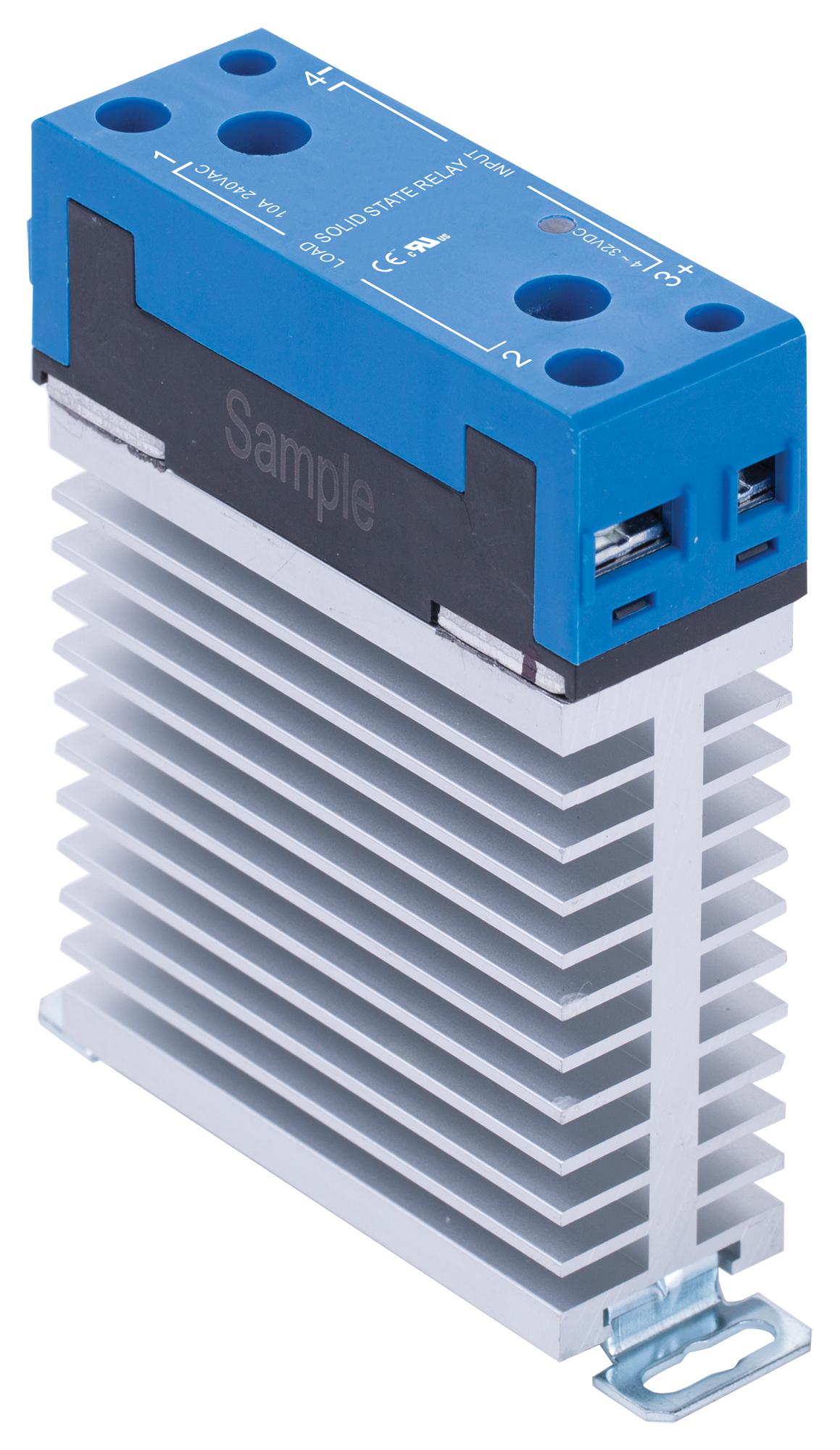

MULTICOMP-PRO MC002282 Solid State Relay
This industrial solid state relay from Multicomp Pro offers reliable single-phase AC output with zero-crossing technology, integrated heatsink, and multiple control voltage options (4-32V DC or 90-280V AC). Available in various current ratings up to 40A and load voltages up to 600V AC, it is ideal for controlling industrial machinery like plastic molding and packaging equipment. Designed for DIN rail mounting and panel screw installation, it features a dielectric strength of 4000V, built-in RC snubber, LED indicator, and detachable radiator for easy maintenance and secure connections.
MULTICOMP-PRO MC002282 Solid State Relay Specifications:
- Control Voltage: 4-32V DC or 90-280V AC
- Load Voltage: 24-280V AC, 24-530V AC, 24-660V AC, or 480V AC
- Load Current: 10A, 20A, 30A, 40A
- Maximum Surge Current: 30A-600A depending on model
- Maximum Off-state Leakage Current: 5mA
- Voltage Drop: Typical 1.25Vrms, Max 1.6Vrms
- Dielectric Strength: >4000Vrms input/output
- Ambient Temperature Range: -30°C to +80°C
- Dimensions: 100mm x 30mm x 112mm (10A-30A), 122mm x 50mm x 110mm (40A)
- Features: Zero crossing, built-in RC snubber, LED indicator, detachable radiator
Buy the Buy Multicomp Solid State Relay Part Number MC002282 Online
Secure your industrial automation needs with the reliable Multicomp Solid State Relay MC002282. Featuring zero-crossing switching, integrated heatsink, and control options up to 40A, this relay is suitable for controlling resistive and inductive loads in manufacturing, packaging, and injection molding equipment. Its DIN rail compatibility allows for flexible installation in control panels. With a robust dielectric strength, fast switching times, and built-in snubber circuit, this relay ensures safe, efficient operation, making it a perfect choice for demanding industrial environments. Buy online now and enhance your project reliability.
Order your Multicomp SeriesMC002282 20A 240V AC Solid State Relay today and ensure dependable control for your industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC002282?
You can click on the BUY or RFQ button to purchase MC002282 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002282?
You can download the MC002282 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC002282?
MULTICOMP-PRO
