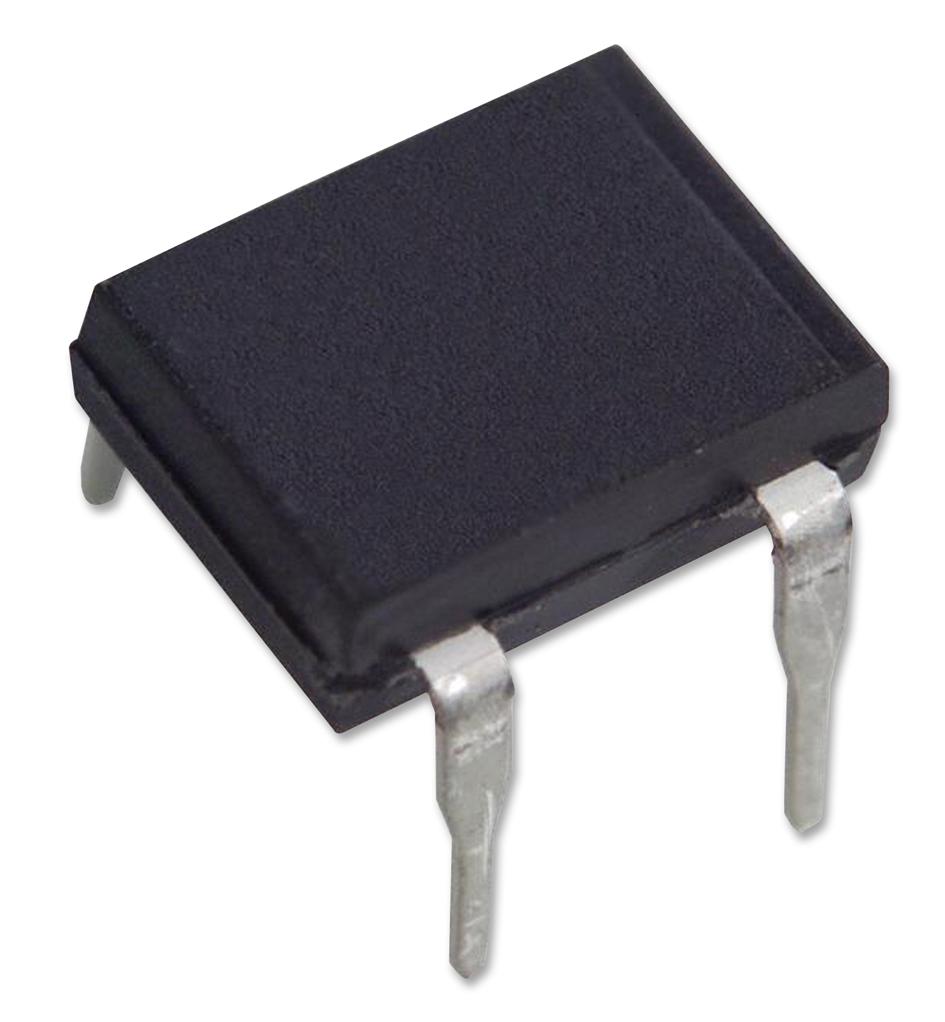

MULTICOMP PRO DF1510 Bridge Rectifier
The Glass Passivated Bridge Rectifier is designed for efficient AC to DC conversion in electronic circuits, supporting continuous operation at rated voltages and currents. It features low forward voltage drop and reliable construction with UL 94V-0 flammability rating, making it suitable for printed circuit boards and various electronic applications. With ratings up to 1000V PRV and a forward current of 1.5A, it offers excellent thermal characteristics, high surge current capacity, and compact dimensions, ensuring durability and high performance in demanding environments.
MULTICOMP PRO DF1510 Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 200V for DF1502, 1000V for DF1510
- Maximum RMS Voltage: 140V for DF1502, 700V for DF1510
- Maximum DC Blocking Voltage: 200V for DF1502, 1000V for DF1510
- Maximum Forward Surge Current: 50A, 8.3ms single half sine-wave, at TA=25°C
- Maximum Instantaneous Forward Voltage at 1.5A: 1.1V
- Maximum Reverse Current at 25°C: 10 pA
- Peak Reverse Voltage (VRRM): 200V for DF1502, 1000V for DF1510
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Typical Junction Capacitance: 25 pF
- Thermal Resistance: 40°C/W from junction to ambient mounted on PCB with copper pads
- Dimensions: Approximate length 8.5mm, width 7.8mm, height 0.8mm, compact and suitable for PCB integration
Buy the Multicomp Series Bridge Rectifier: DF1510
Purchase the Multicomp DF1510 bridge rectifier online today. Designed for robust power conversion with ratings up to 1000V and 1.5A, it ensures reliable performance in your electronic circuits. This high-quality component features low forward voltage drop, excellent surge current capacity, and UL 94V-0 flammability rating, making it perfect for PCB mounting and various industrial applications. Order now for fast delivery and high durability in demanding environments.
Get Multicomp DF1510 today—built for high voltage and reliable power rectification in demanding electronic applications.
