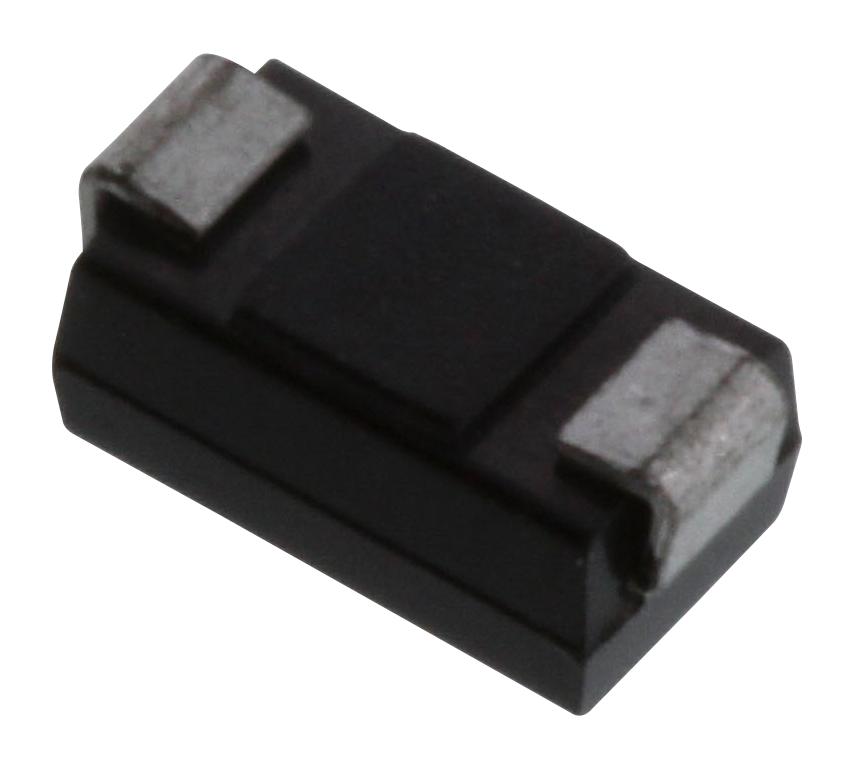

MULTICOMP PRO ES1G Ultrafast Diode
The ultrafast diode is designed for high-efficiency applications requiring rapid switching, with a glass passivated junction chip and low profile package suitable for surface mounting. It features built-in strain relief, easy pick and place, and RoHS compliance. With a moulded plastic case, pure tin plated terminals, and high-temperature soldering capability at 260°C for 10 seconds, it delivers reliable performance with a maximum repetitive peak reverse voltage of 400V, RMS voltage of 280V, and a recovery time of 35 ns. Ideal for automated assembly and demanding electronic circuits.
MULTICOMP PRO ES1G Ultrafast Diode Specifications:
- Maximum Recurrent Peak Reverse Voltage: 50V, 400V, 600V
- Maximum RMS Voltage: 35V, 280V, 420V
- Maximum DC Blocking Voltage: 50V, 400V, 600V
- Maximum Average Forward Rectified Current: 1A
- Peak Forward Surge Current: 30A for 8.3ms
- Maximum Instantaneous Forward Voltage at 1A: 0.95V, 1.3V, 1.7V
- Maximum Reverse Current at 25°C: 5μA, 100μA, 100μA
- Maximum Reverse Recovery Time: 35 ns
- Typical Junction Capacitance: 10 pF, 8 pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: Not specified
- Case: Moulded plastic
- Terminals: Pure tin plated, lead free
- Size: Surface mounted, 12mm tape packaging
- Maximum soldering temperature: 260°C for 10 seconds
- Dimensions: 0.062-0.181 inches (1.58-4.5mm)
Buy the Buy Multicomp Pro Ultrfast Diode Part Number ES1G+ Online
Get your ultrafast diode from Multicomp Pro online today and benefit from fast delivery, high efficiency, and proven reliability. Designed for automated manufacturing, this surface-mount diode supports high-voltage, rapid switching, and low forward voltage. Ideal for power supplies, converters, and high-frequency circuits, it ensures optimal performance with low reverse recovery time of 35 nanoseconds. Purchase now to enhance your electronic projects with this RoHS-compliant, lead-free component that guarantees durability and consistent operation in demanding environments.
Buy Multicomp Pro ES1G+ now and experience unmatched reliability and performance with high-speed switching capabilities.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ES1G?
You can click on the BUY or RFQ button to purchase ES1G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ES1G?
You can download the ES1G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ES1G?
MULTICOMP PRO
