MULTICOMP PRO ES3BB Super Fast Diode
The super fast surface mount diode is designed for high efficiency applications, featuring glass passivation and a low forward voltage drop. It supports a maximum repetitive peak reverse voltage of 100V and 200V with suitable current capabilities of 3A. Its fast recovery time of 35 ns, minimal reverse leakage current, and high temperature tolerance range from -55°C to +150°C make it ideal for various power rectification uses. Constructed with UL 94V-0 rated plastic, it offers reliable performance in any mounting position and high-frequency circuits.
MULTICOMP PRO ES3BB Super Fast Diode Specifications:
- Maximum Recurrent Peak Reverse Voltage: 100V or 200V
- Maximum RMS Voltage: 70V or 140V
- Maximum DC Blocking Voltage: 100V or 200V
- Peak Forward Surge Current: 100A for 8.3ms
- Peak Forward Voltage at 3A: 0.95V
- Maximum Reverse Current at 25°C: 5μA
- Reverse Recovery Time: 35ns
- Junction Capacitance: 70pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Package Dimensions: 0.083 inches ± 0.015 inches length, 0.075 inches - 0.130 inches width
- Material: Glass passivated, UL 94V-0 plastic
- Mounting: Surface mount, flexible positioning
- Current Rating: 3A
- Reverse Voltage: 100V or 200V

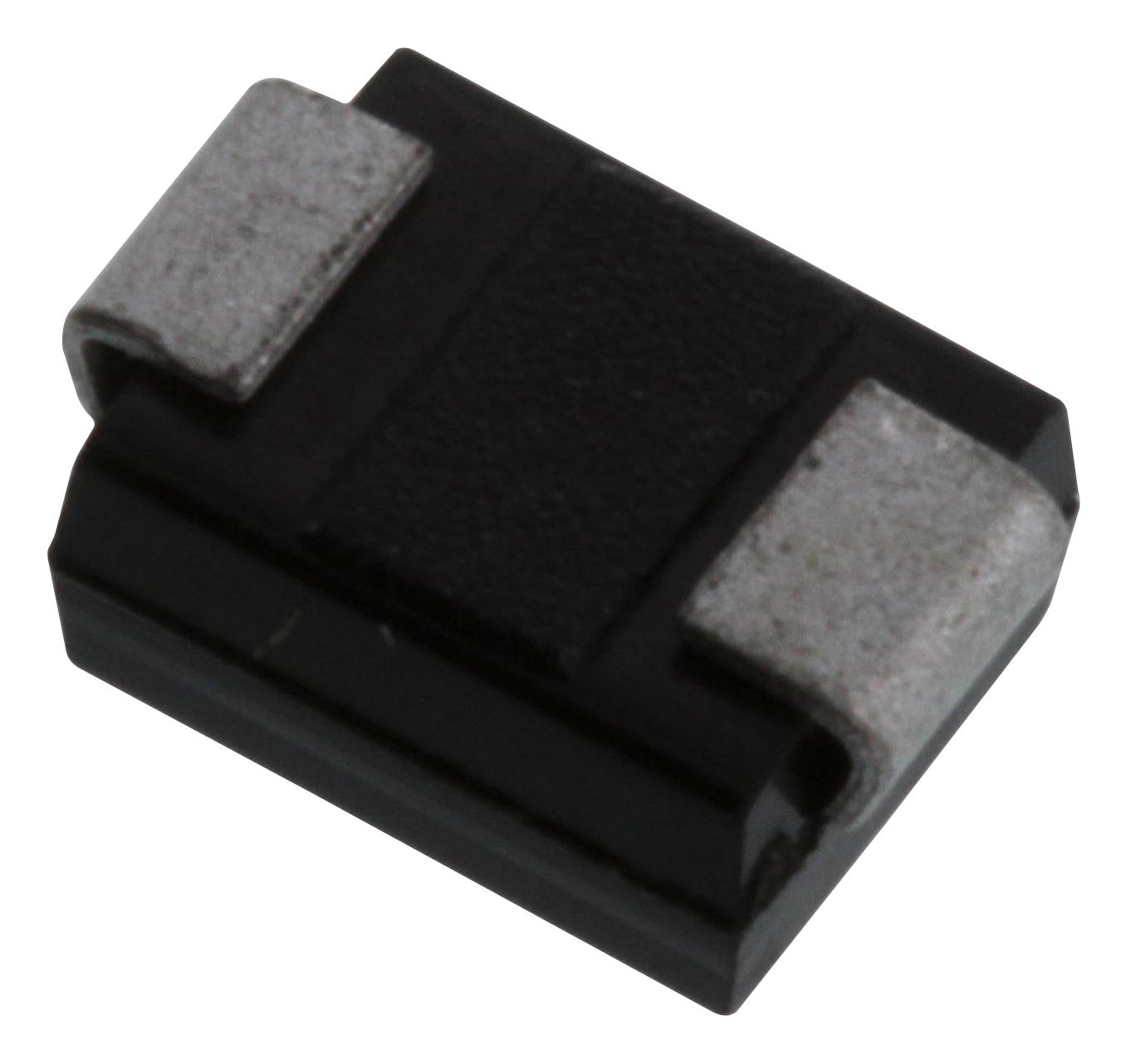

Buy the Buy Multicomp Super Fast Diode Part Number ES3BB+ Online
Enhance your power circuits with the high-performance Multicomp Super Fast Diode. Rated at 3A and up to 200V, it features quick recovery time of 35 ns, ensuring excellent efficiency in high-speed rectification applications. Its glass passivated surface passivation and UL-rated plastic provide durability and safety under harsh conditions. Mountable in any position, this diode is perfect for high-frequency power supplies, inverters, and similar electronic systems requiring fast switching, low leakage, and exceptional thermal stability, delivering long-lasting, reliable operation.
Get Multicomp ES3BB+ diode today—built for high efficiency, fast switching, and reliable power rectification in demanding circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ES3BB?
You can click on the BUY or RFQ button to purchase ES3BB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ES3BB?
You can download the ES3BB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ES3BB?
MULTICOMP PRO
