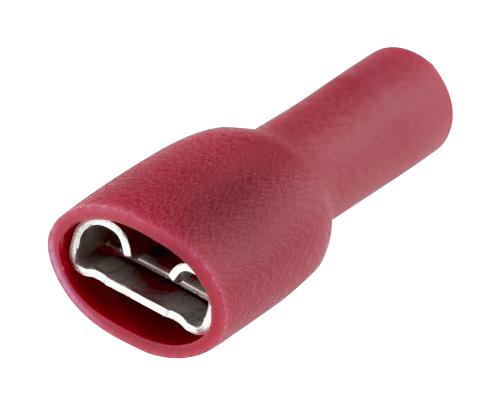

MULTICOMP PRO FDFD1250 Female disconnect terminal
The FDFD1-250 from Multicomp Pro is a vinyl-insulated, double crimp female quick disconnect terminal made from tin-plated brass. It features a copper sleeve that ensures maximum electrical conductivity, enhances the strength of the barrel, and protects wires against stress and vibration. Suitable for wire sizes ranging from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²), it has a red insulation color and fits 6.35 mm x 0.81 mm tab sizes. The terminal is rated for a maximum of 600V at 105°C. Multicomp Pro products are highly rated, with a 4.6 out of 5-star rating, and come with a 12-month limited warranty. Common applications include automotive, electrical, industrial, hobby, and educational projects.
MULTICOMP PRO FDFD1250 Female disconnect terminal Specifications:
- Material: Tin-plated brass
- Insulation Material: Vinyl
- Insulation Colour: Red
- Maximum Voltage: 600V
- Maximum Temperature: 105°C
- Wire Range: 22-16 AWG (0.5 mm² to 1.5 mm²)
- Tab Size: 6.35 mm x 0.81 mm
- Terminal Type: Double crimp female quick disconnect
- Features: Copper sleeve on barrel, stress and vibration protection, fully insulated
- Rated for applications in automotive, electrical, industrial, hobby, and educational contexts
Buy the Buy Multicomp Pro FDFD1250 Part Number FDFD1250 Online
Purchase the Multicomp Pro FDFD1250 female disconnect terminal online today. This fully insulated, double crimp connection offers excellent conductivity with a copper sleeve, rated up to 600V and 105°C. Its vinyl insulation with a red colour ensures safety and durability for a variety of electrical applications. Suitable for 22 to 16 AWG wires, the terminal features a 6.35 mm x 0.81 mm tab size. Built from tin-plated brass, it provides high performance, vibration resistance, and easy installation, making it ideal for automotive, industrial, and hobbyist projects. Buy now to ensure a secure and reliable connection.
Get Multicomp Pro FDFD1250 today—designed for reliable electrical connections and long-lasting durability in industrial and automotive projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO FDFD1250?
You can click on the BUY or RFQ button to purchase FDFD1250 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part FDFD1250?
You can download the FDFD1250 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of FDFD1250?
MULTICOMP PRO
