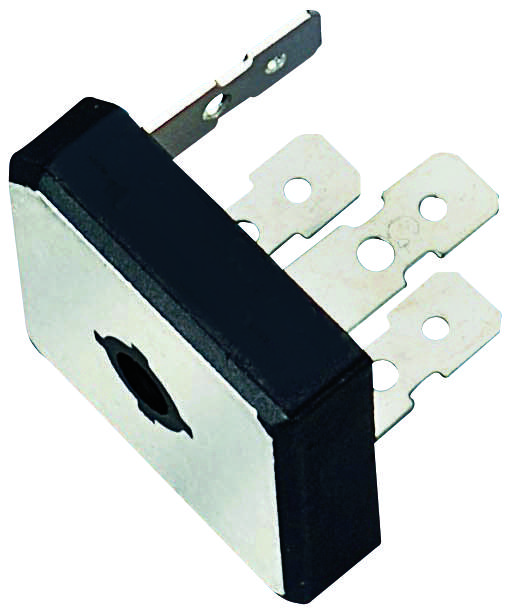

MULTICOMP PRO GBPC2502 Bridge Rectifier
The GBPC2502 is a glass passivated bridge rectifier housed in a plastic body. It features an integrally molded heatsink that provides very low thermal resistance for efficient heat dissipation. The terminals are solderable according to MIL-STD-202, method 208, and the device offers an isolation voltage from case to lead exceeding 2,500V. It supports a maximum RMS voltage of 140V, a maximum DC blocking voltage of 200V, and a peak forward surge current of 300A. Suitable for mains rectification, this series ensures reliable performance in power conversion applications.
MULTICOMP PRO GBPC2502 Bridge Rectifier Specifications:
- Maximum RMS Voltage: 140V
- Maximum DC Blocking Voltage: 200V
- Peak Forward Surge Current: 300A
- Peak Reverse Voltage: 200V
- Solderable terminals according to MIL-STD-202, method 208
- Thermal Resistance (Typ): 1.5°C/W
- Isolation Voltage (Case to Lead): > 2,500V
- Housing Material: Plastic
- Thermal Dissipation: Integral molded heatsink
- Operating Temperature Range: -50°C to +150°C
- Dimensions: 1.130 inches (28.7 mm) length, 0.664 inches (16.8 mm) width
- Mounting: Any position
Buy the Multicomp Series GBPC2502 Bridge Rectifier: 200V 25A
Purchase the Multicomp GBPC2502 bridge rectifier online today and ensure dependable performance for power conversion tasks. Its glass passivated design guarantees low forward voltage drop and high surge current capacity, making it ideal for mains rectification applications. Featuring an integrally molded heatsink facilitates efficient heat dissipation, supporting reliability in various operational environments. With solderable terminals conforming to MIL-STD-202, it offers easy mounting options. Its high isolation voltage and robust construction make it suitable for industrial and electrical power systems, ensuring long-lasting durability and optimal efficiency in your projects.
Get Multicomp GBPC2502 today—built for reliable power rectification and efficient heat management.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC2502?
You can click on the BUY or RFQ button to purchase GBPC2502 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC2502?
You can download the GBPC2502 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC2502?
MULTICOMP PRO
