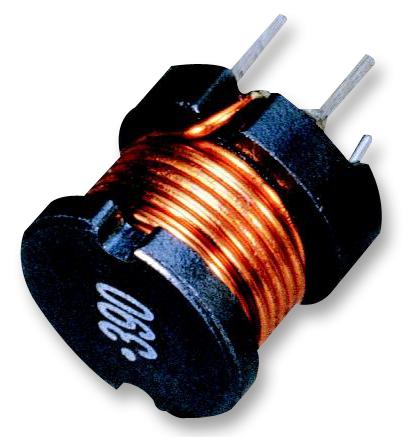

MULTICOMP PRO MCSCH895221KU Radial Leaded Inductor
This Radial Leaded inductor from Multicomp Pro series offers a reliable solution for electronic and industrial applications. Designed with a 220UH inductance and a ±10% tolerance, it features a robust construction with lead-free solder and operates within a temperature range of -55°C to +130°C. Suitable for high-reliability environments, it has an average DCR of 480mΩ at 25°C and can handle continuous current up to 0.64A. Its compact dimensions and RoHS compliance make it ideal for space-constrained assemblies requiring stable inductance and low core loss over a wide temperature spectrum.
MULTICOMP PRO MCSCH895221KU Radial Leaded Inductor Specifications:
- Inductance: 220UH ±10%
- Tolerance: ±10%
- Maximum DCR: 480mΩ at 25°C
- Operating Temperature Range: -55°C to +130°C
- Solder Material: Lead-free Sn99.3% / Cu0.7%
- Core Material: F6D DR2
- Wire Diameter: 0.3mm UEFN/U (155°C)
- Test Frequency: 1kHz
- Test Voltage: 0.25V
- Temperature Rise: Max 40°C at 0.64A
- RoHS Compliant: Yes
- Storage Temperature: 0°C to 40°C, below 70% RH
- Humidity Resistance: 60°C at 60% RH for 40 hours
- Moisture Sensitivity: According to J-STD-020B level 3
- Solderability: Min 95% coverage, 260°C for 15 seconds
Buy the Multicomp Pro 220UH – Reliable Electronic inductor for Industrial Applications
Purchase the reliable Radial Leaded inductor from Multicomp Pro now and ensure robust performance for your power supplies and electronic circuits. With a 220UH inductance and high-temperature operation, this component is ideal for industrial and electronic applications requiring stable inductive behavior over wide temperature ranges. Its lead-free solder and RoHS compliance guarantee eco-friendly manufacturing, while its compact size saves space in your assemblies. Order online today for fast delivery and trusted quality for your critical projects.
Order your Multicomp Pro 220UH inductor today and enhance your electronic designs with dependable, high-quality inductors suitable for demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSCH895221KU?
You can click on the BUY or RFQ button to purchase MCSCH895221KU from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSCH895221KU?
You can download the MCSCH895221KU datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSCH895221KU?
MULTICOMP PRO
