MULTICOMP PRO MP008616 PoE Extender Switch

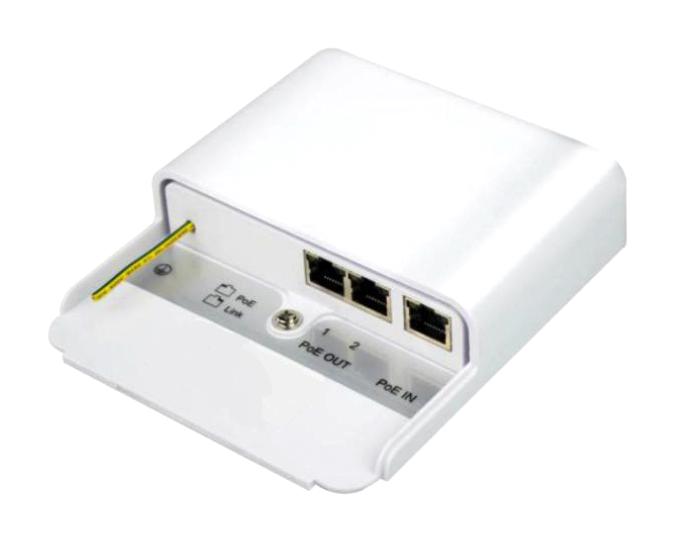

The MP008616 from Multicomp PRO is an outdoor PoE extender pass-through switch equipped with two outputs, each delivering up to 30W of power. It extends the range of Power over Ethernet (PoE) and Ethernet data (10/100/1000 Mbps) by an additional 100 meters without requiring an external power supply. This device is ideal for outdoor PoE cameras and network equipment. It is compatible with IEEE 802.3at and 802.3af standards, automatically detects and protects connected PoE devices from incorrect installation, and features a compact, fixed design with hoop-type mounting for easy installation. Its full-rate network capability ensures reliable data transfer across the extended setup.
MULTICOMP PRO MP008616 PoE Extender Switch Specifications:
- Networking Interfaces: 10/100/1000 Mbps Ethernet RJ45
- Network Medium: 100 Meter (328ft)
- Standards: IEEE 802.3at/af
- Dimensions: 125mm x 150mm x 36mm (4.92” x 5.90" x 1.42")
- Weight: 232g
- Enclosure: White Polycarbonate
- Operating Temperature: -30°C to 70°C (-20°F to 158°F)
- Operating Humidity: 5% to 95% Non condensing
- PoE Pin Assignment: V+(RJ45 Pin 3,6), V-(RJ45 Pin 1,2)
- Switching Capacity: 6Gbps
- Typical Power Consumption: 1.5W
- Max. Power Consumption: 30W
Buy the Buy Multicomp PoE Extender Part Number MP008616 Online
Experience seamless outdoor network expansion with the Multicomp MP008616 PoE Extender Switch. This reliable device extends Ethernet and PoE signals by up to 100 meters, supporting IEEE 802.3at and 802.3af standards. Its 30W power delivery ensures robust operation for outdoor cameras and network devices. Easy to install with hoop-type mounting and a compact design, it automatically detects and safeguards connected PoE equipment from damages. Perfect for industrial, security, and outdoor surveillance applications seeking dependable performance.
Order your Multicomp Series MP008616 outdoor PoE pass-through switch today and enhance your network connectivity with reliable power and data extension.
