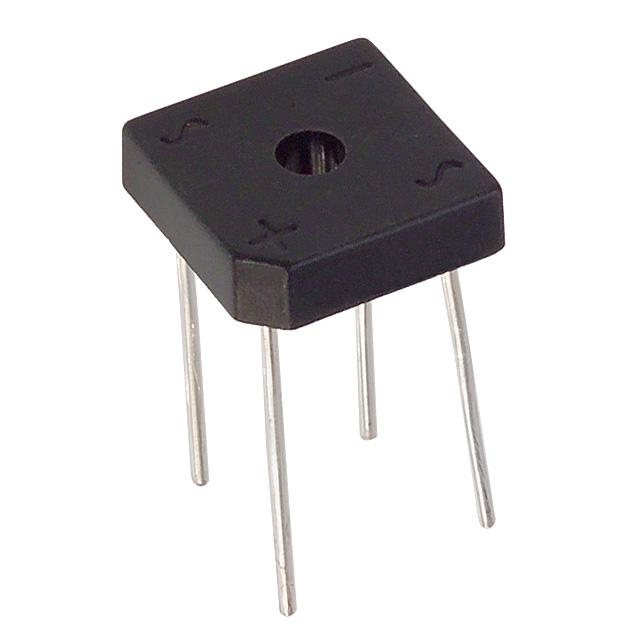

MULTICOMP PRO GBPC3506W Bridge Rectifier
The GBPC3506W is a high-current bridge rectifier designed for industrial power conversion applications. Made with plastic material and equipped with an integrally molded heatsink, it ensures low thermal resistance for efficient heat dissipation. Rated at 35A with a maximum repetitive peak reverse voltage of 600V, it features surge overload ratings up to 400A and a low forward voltage drop. Suitable for use in resistive or inductive loads, the device offers high temperature soldering capability and isolation voltage over 2,500V from case to lead, making it ideal for robust power rectification tasks.
MULTICOMP PRO GBPC3506W Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 600V
- Maximum RMS Voltage Vrms: 420V
- Maximum DC Blocking Voltage Voc: 600V
- Maximum Average Forward Rectified Current: 35A
- Peak Forward Surge Current: 400A
- Forward Voltage Drop at 12.5A: 1.4V
- Maximum DC Reverse Current Ir: 5mA
- Thermal Resistance Junction to Case: 1.5°C/W
- Operating Temperature Range: -50°C to +150°C
- Dimensions: 1.14 x 0.49 inches (28.5 x 12.4 mm)
- Hole for#10 Screw: 0.22 inches (5.59mm)
Buy the Multicomp GBPC3506W – Reliable Bridge Rectifier for Industrial Applications
Order the Multicomp GBPC3506W online now to secure a high-current bridge rectifier with robust thermal management, high surge ratings, and excellent voltage handling. Designed for industrial power supplies, this rectifier delivers reliable performance under demanding conditions. Its compact size with integrated heatsink simplifies installation and heat dissipation, ensuring longevity and efficiency in your power conversion projects. Buy online today for fast delivery, guaranteed quality, and competitive pricing on a proven industrial-grade power component.
Get Multicomp GBPC3506W today—built for high current capacity, dependable performance, and long-lasting durability in power conversion systems.
