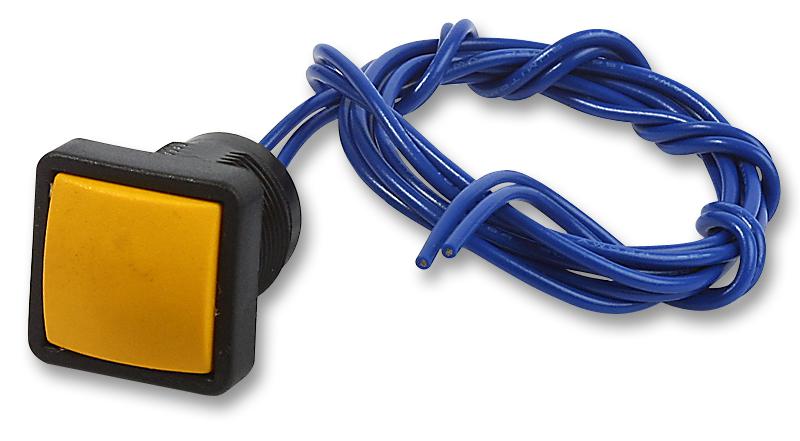

MULTICOMP PRO MCPAS6D1M1CES55 Industrial Illuminated Switch
The MCPA Series switch offers reliable electrical performance with various illumination options, including red, yellow, green, and blue. It is IP67 rated for water immersion up to 1 meter for 30 minutes, making it suitable for industrial environments. The series features different mounting styles, including round and square, with metal or plastic housing, offering versatility in panel applications. All switches support manual and wave soldering, with a lifespan of over 21 million cycles, ensuring durability. Suitable for harsh conditions, this series is ideal for control panels, automation systems, and industrial equipment.
MULTICOMP PRO MCPAS6D1M1CES55 Industrial Illuminated Switch Specifications:
- Current / Voltage Rating: 400mA 32V AC, 100mA 50V DC, 125mA 125V AC, Max 500mA 48V AC, 200mA 50V DC, 250V AC
- Electrical Resistance: 50mΩ max.
- Insulation Resistance: 1GΩ min. at 500V DC
- Dielectric Strength: 1,000V AC rms, 1,500V AC rms for metal materials
- Mechanical Life: 21 million cycles
- Operating Temperature: -30°C to 85°C
- Panel Thickness: B1 series: 0.8mm min. - 1.8mm max., B2 series: 1.5mm min. - 4mm max.
- Total Travel: B1 series: 1.8mm, B2 series: 4mm
- Operating Force: 2N to 5N
- Contact Bounce: 10ms
- Torque: Max 0.5 Nm for panel mounting, 1.5 Nm for metal housing
- Soldering: Max 350°C for 5 seconds, wave soldering at 260°C ±5°C
Buy the Multicomp MCPAS6D1M1CES55 – Reliable Illuminated Control Switch for Industrial Applications
Order the multicomp MCPAS6D1M1CES55 series switch online today to enjoy high-quality, IP67 rated illumination suitable for demanding industrial environments. This switch features multiple colors, robust construction with metal or plastic housing, and versatile mounting options, making it ideal for control panels, automation, and machinery. With a lifespan of over 21 million cycles, it guarantees durable operation even in tough conditions. Easy soldering and compliance with industry standards ensure seamless integration into your systems. Enhance your industrial controls now.
Buy multicomp MCPAS6D1M1CES55 now and experience unmatched reliability and performance for industrial control and automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPAS6D1M1CES55?
You can click on the BUY or RFQ button to purchase MCPAS6D1M1CES55 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPAS6D1M1CES55?
You can download the MCPAS6D1M1CES55 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPAS6D1M1CES55?
MULTICOMP PRO
