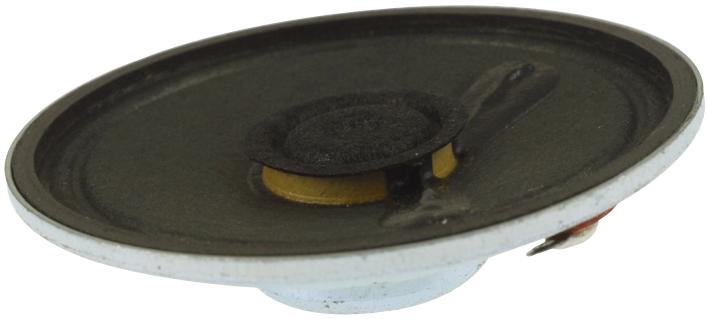

MULTICOMP PRO MCKP50120SP14787 Audio Speaker
The MCKP50120SP1-4787 is a reliable piezo speaker and receiver designed for audio applications. Capable of handling up to 1 watt of power, it produces clear sound levels of 86 dB. Its impedance is 80 ohms, with a frequency range from FO to 5kHz, making it suitable for various sound output needs. It has been tested for heat, cold, humidity, and load conditions, ensuring durability under demanding environments. The device features a polarity test, ensuring correct installation for optimal operation. Compact and RoHS compliant, it provides dependable performance in a compact form factor.
MULTICOMP PRO MCKP50120SP14787 Audio Speaker Specifications:
- Impedance: 80 ohms at 1Vrms, 1kHz
- Resonant Frequency: 500Hz ±20%
- Frequency Range: FO to 5kHz
- Rated Power: 0.5W
- Max Power: 1W
- Sound Pressure Level: 86 ±3dB at 1W/1M
- Distortion: Less than 10% at 2kHz/2Vrms
- Test Conditions: Heat, cold, humidity, and load testing for durability
- Polarity: Cone moves forward when supplied plus DC voltage
- Dimensions: 2.3 mm x 2.0 mm x 0.4 mm
- RoHS Compliant
- Part Number: MCKP50120SP1-4787
Buy the Multicomp Series Audio Speaker: MCKP50120SP1-4787
Acquire the Multicomp Series MCKP50120SP1-4787 today for high-quality sound output in compact design. Rated at 0.5W with an SPL of 86dB, it ensures clear audio for various applications. Its impedance is 80 ohms, with a frequency range covering FO to 5kHz, making it versatile for multiple uses. Tested for durability against temperature, humidity, and load conditions, this RoHS-compliant speaker offers long-lasting performance. Perfect for electronic designers and audio engineers seeking reliable, compact sound solutions. Order online now!
Get Multicomp Series MCKP50120SP1-4787 today—built for precision, durability, and reliable sound performance.
