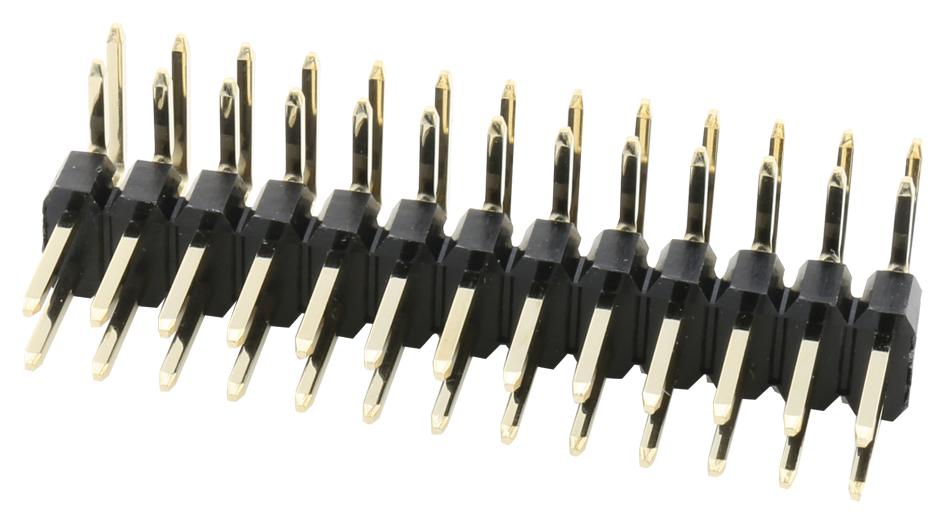

MULTICOMP PRO 2213R26G 2.54mm Pin Header Right Angle
The MULTICOMP PRO 2213R-26G is a robust and reliable pin header designed for secure electrical connections in a variety of applications. This right-angle header features a 2.54mm pitch, a double-row configuration with 26 positions, and a through-hole termination style. Constructed with a PBT (UL94V-0) insulator and copper alloy contacts plated with gold, it offers excellent insulation resistance, low contact resistance, and durability. Ideal for applications in industrial automation, consumer electronics, and telecommunications equipment where space is limited and a right-angle connection is required.
MULTICOMP PRO 2213R26G 2.54mm Pin Header Right Angle Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: PBT (UL94V-0)
- Insulator Colour: Black
- Contact Material: Copper Alloy
- Plating: Gold Plated
- Description: Header, 2.54mm, R/A, 26POS, 2ROW, TH
- Positions: 26
- Rows: 2
