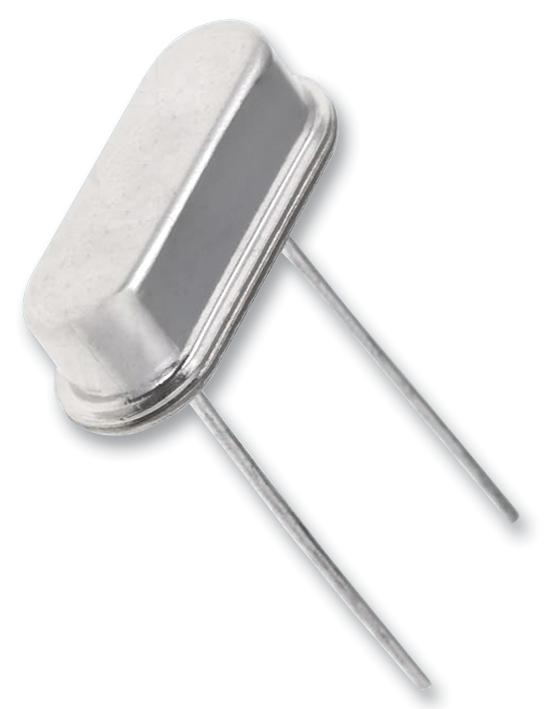

MULTICOMP PRO HC49S4915230507030ATF Ceramic Crystal
This product from Multicomp Pro is suitable for clock and timing applications, featuring high stability and low tolerance variations. It offers outstanding performance in industrial and microcontroller circuits, ensuring accurate frequency control. Designed with a compact, ultra-thin ceramic package measuring only 1.4mm in height, it is ideal where space is limited. It covers a frequency range of 10 to 30 MHz, with options for stability and tolerance suited for demanding electronic systems. Its reliability and cost-effectiveness make it a preferred choice for precise timing needs.
MULTICOMP PRO HC49S4915230507030ATF Ceramic Crystal Specifications:
- Nominal Frequency Range: 10 to 30 MHz
- Vibration Mode: Fundamental (AT), 3rd Overtone (AT)
- Frequency Tolerance at 25°C: +20, +30, or +50 ppm
- Temperature Stability: +30 or +50 ppm
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Load Capacitance: 8 pF to 32 pF or series
- Shunt Capacitance: 7 pF maximum
- Drive Level: 100 μW maximum
- Insulation Resistance: 500 MΩ minimum at 100V DC
- Maximum Dimensions: Height 1.4mm, compact ceramic package
- Material: Ultra thin ceramic with resistance weld HC49/4SMX case
- Recommended for low-profile applications where space is constrained
- RoHS Compliant, supplied taped and reeled for ease of installation
Buy the Multicomp Reliable Crystal for Industrial Applications
Order the Multicomp ceramic crystal today to ensure high accuracy and stability in your timing circuits. It features a compact, low-profile design measuring only 1.4mm in height, perfect for space-constrained applications. Suitable for clock generators, microcontrollers, and industrial systems, this crystal offers excellent frequency stability within 10 to 30 MHz range. Taped and ready for quick assembly, it combines reliability, cost-efficiency, and quality to meet your timing needs efficiently. Enhance your electronic designs with this trusted component available online now.
Buy Multicomp crystal now and experience unmatched reliability and precision timing for your industrial and microcontroller projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HC49S4915230507030ATF?
You can click on the BUY or RFQ button to purchase HC49S4915230507030ATF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HC49S4915230507030ATF?
You can download the HC49S4915230507030ATF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HC49S4915230507030ATF?
MULTICOMP PRO
