MULTICOMP PRO HC49SM1630506016ATF Crystal

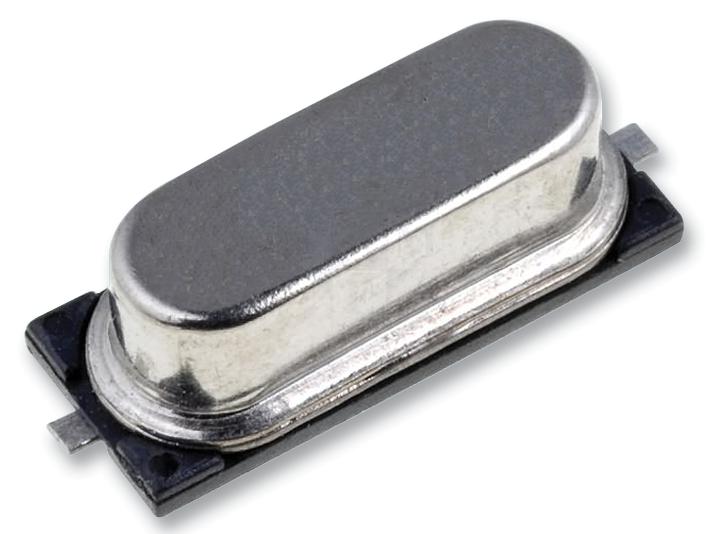

The Multicomp Pro HC49SM-16-30-50-60-16-ATF is a compact, surface mount crystal designed for industrial, microcontroller, and timing applications. It measures 11.4mm by 4.65mm and operates at 16MHz with ±30ppm tolerance and ±50ppm stability. Suitable for operating temperatures from -10°C to 60°C, it features a 16pF load capacitance and high reliability. Ideal for clock, timing circuits, and space-constrained designs, this crystal offers cost-effective performance with superior resistance weld HC49/4SMX metal case, making it perfect for demanding electronic applications.
MULTICOMP PRO HC49SM1630506016ATF Crystal Specifications:
- Nominal Frequency Range: 16MHz
- Frequency Tolerance at 25°C: ±30ppm
- Frequency Stability: ±50ppm
- Operating Temperature Range: -10°C to 60°C
- Storage Temperature Range: -20°C to 70°C
- Load Capacitance: 16pF
- Case Dimensions: 11.4mm length x 4.65mm width
- Maximum height: 4mm
- Vibration Mode: Fundamental (AT)
- Insulation Resistance: 500MQ minimum at 100V DC
- Aging: +5ppm per year
- Material: Metal case with superior resistance weld
- Application: Industrial, clock, timing circuits
- RoHS Compliant
Buy the Buy Multicomp Pro Crystal Part Number HC49SM1630506016ATF Online
Purchase the Multicomp Pro HC49SM-16-30-50-60-16-ATF crystal online today to benefit from reliable, high-performance timing solutions crucial for industrial and microcontroller applications. Its compact size of 11.4mm x 4.65mm makes it ideal for space-sensitive projects, while its operating temperature range of -10°C to 60°C ensures durability in diverse environments. With a load capacitance of 16pF and a tolerance of ±30ppm, this crystal guarantees precise frequency stability. Get it now for seamless integration into your clock, timing, and control circuits with guaranteed quality and long-term stability.
Buy Multicomp Pro HC49SM-16-30-50-60-16-ATF now and experience unmatched reliability and performance in space-constrained electronic designs.
