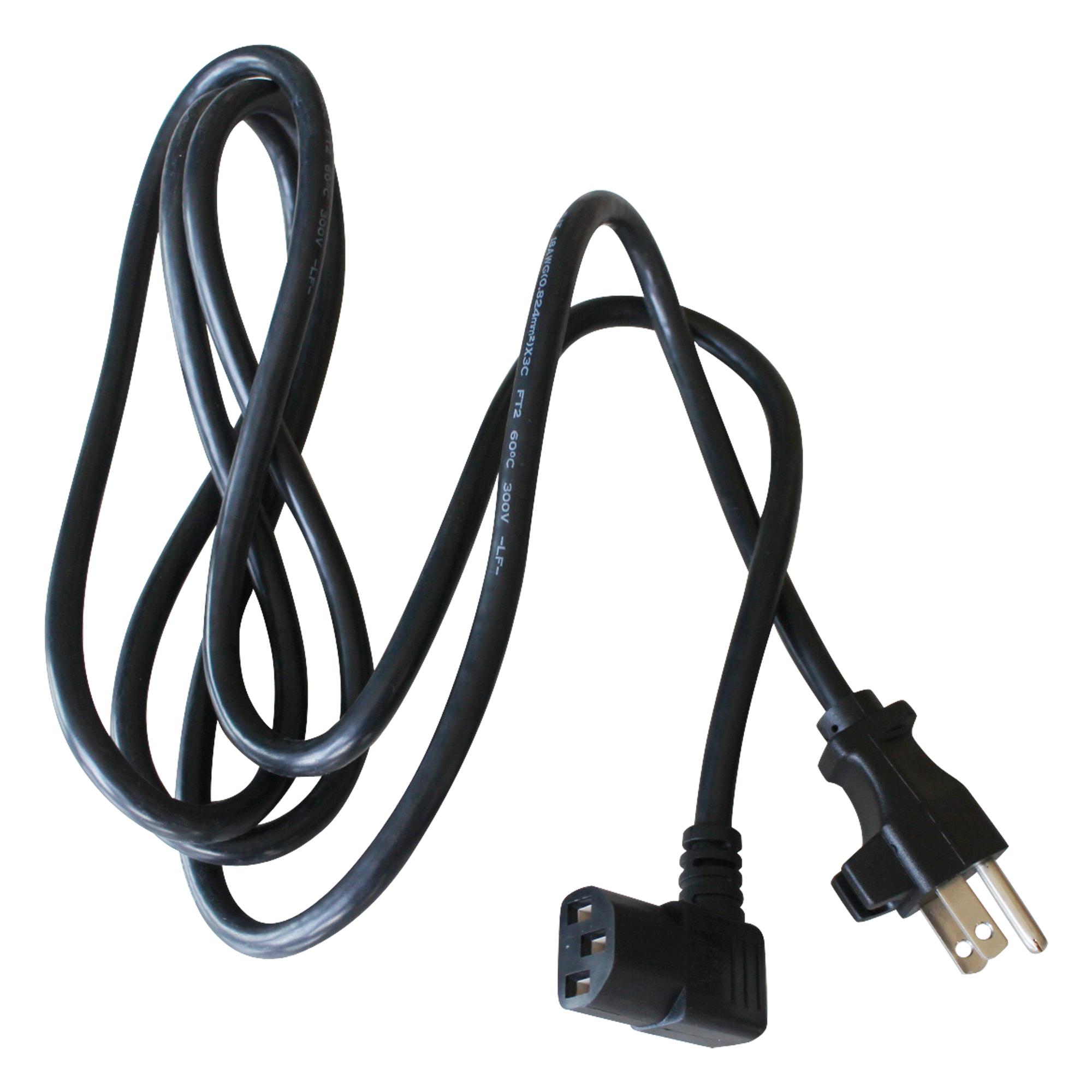

MULTICOMP-PRO MC182 Power Cord
This high-quality power cord is UL Certificated, designed for reliable electrical connectivity. It features a flexible 18 AWG 3-conductor cable with PVC insulation and jacket, suitable for 125V applications. The cord includes a NEMA 5-15P plug with a cord grip, measuring approximately 2,006.6mm in length. It complies with RoHS standards and has undergone rigorous testing, including hi-pot, insulation resistance, and continuity tests. Constructed with copper conductors and nickel-plated connectors, it ensures durability and safety for various electronic devices and power setups.
MULTICOMP-PRO MC182 Power Cord Specifications:
- Wire Cross-Section: 18 AWG x 3C
- Insulation Thickness: 0.76mm (>0.69mm)
- Overall Diameter: 7.8mm ±0.2mm
- Copper Conductor Diameter: 1.18mm ±0.003mm
- PVC Jacket Thickness: 0.76mm
- Overall Length: 2006.6mm ±76mm
- Plug: NEMA 5-15P with Cord Grip
- Color: Black and Brown (L), Blue (N), Green-Yellow (Earth)
- Rated Voltage: 125V
- Rated Current: 10A
- RoHS Compliant
- Tested for Hi-Pot (1500V/1sec), Insulation Resistance (>100 MΩ DC 500V)
- Material: Copper Conductors, Nickel-plated Connectors
- UL Certificated, RoHS Certified
- Certification: UL Listed, RoHS Compliant
- Material: PVC Insulation and Jacket, Copper Conductors
- Dimensions: Length approximately 2 meters, plug face dimensions suitable for standard connections
- Additional Certifications: UL, RoHS, IEC 60320 C13 Receptacle
- Application: Suitable for electronic devices requiring reliable power connections and compliance with safety standards
Buy the Buy multicomp Power Cord Part Number MC182 Online
Enhance your electrical setup with this high-quality power cord. Featuring UL certification, 18 AWG conductors, and a NEMA 5-15P plug, it ensures safe, reliable power delivery for your devices. The cord’s PVC insulation and jacket provide durability and flexibility, ideal for various applications. Measuring approximately 2 meters in length, it meets RoHS standards and has undergone extensive safety testing, including hi-pot and insulation resistance checks. Perfect for industrial, commercial, or personal use where dependable power connections are essential.
Buy multicomp MC182 now and experience unmatched reliability, durable construction, and compliance with safety standards for your power needs.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC182?
You can click on the BUY or RFQ button to purchase MC182 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC182?
You can download the MC182 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC182?
MULTICOMP-PRO
