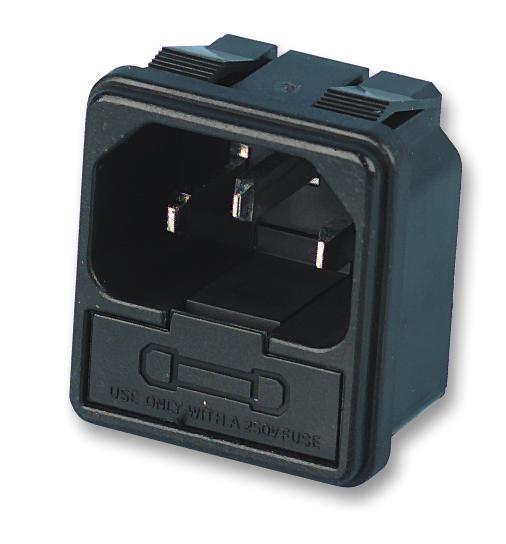

MULTICOMP PRO JR1011FS Fused Inlet
The JR-101-1FS is a reliable snap-fit IEC fused inlet designed for seamless integration in electrical applications. Made with a 94V-2 nylon-66 body and fuse cover, it features solder contact termination and a glass-reinforced resin plating. Rated at 10A and 250VAC, it provides excellent insulation resistance of over 100 megaohms at 500VDC and withstands voltage of 2000VAC for one minute. Operating efficiently from -25°C to +85°C, this inlet incorporates a Sn-plated BSP 1-1/2H terminal, fuse holder, and connector, ensuring enhanced safety and durability.
MULTICOMP PRO JR1011FS Fused Inlet Specifications:
- Rating: 2.5W / 6.3A 250V AC, 10A 250V AC
- Withstand Voltage: 2000VAC for 1 minute
- Insulation Resistance: >100MQ at 500V DC
- Operating Temperature: -25°C to +85°C
- IEC Connector Type: Snap Fit
- Body Material: Nylon66, 94V-2 Resin Glass
- Fuse Cover Material: Nylon66, 30% Glass-Reinforced Resin
- Terminal Type: Sn-plated BSP 1-1/2H EDGE, Center Terminal, Short Terminal Options
- Fuse Holder: Short type available, 0.5mm thickness
- Connector Thickness: 0.6mm
- Mounting Hole: Diameter 27.0mm
- Panel Thickness: 0.8-2.0mm
- Color: Standard black
- Operating Environment: Indoor, dry conditions
Buy the Buy Multicomp IEC Fused Inlet Part Number JR-101-1FS Online
Secure your electrical installations with the reliable Multicomp Fused Inlet. Featuring a rugged nylon-66 body, solder contact termination, and rated for 10A at 250VAC, this inlet provides excellent insulation resistance over 100 megaohms and withstands 2000VAC for safety. Its operating temperature range from -25°C to +85°C makes it versatile for various environments. Easy to install with snap-fit mounting, it includes fuse holder and terminal options for enhanced durability and safety, suitable for professional electrical and industrial applications.
Order your Multicomp SeriesJR-101-1FS fused inlet today and ensure your electrical projects are protected with durable, reliable fused connections.
