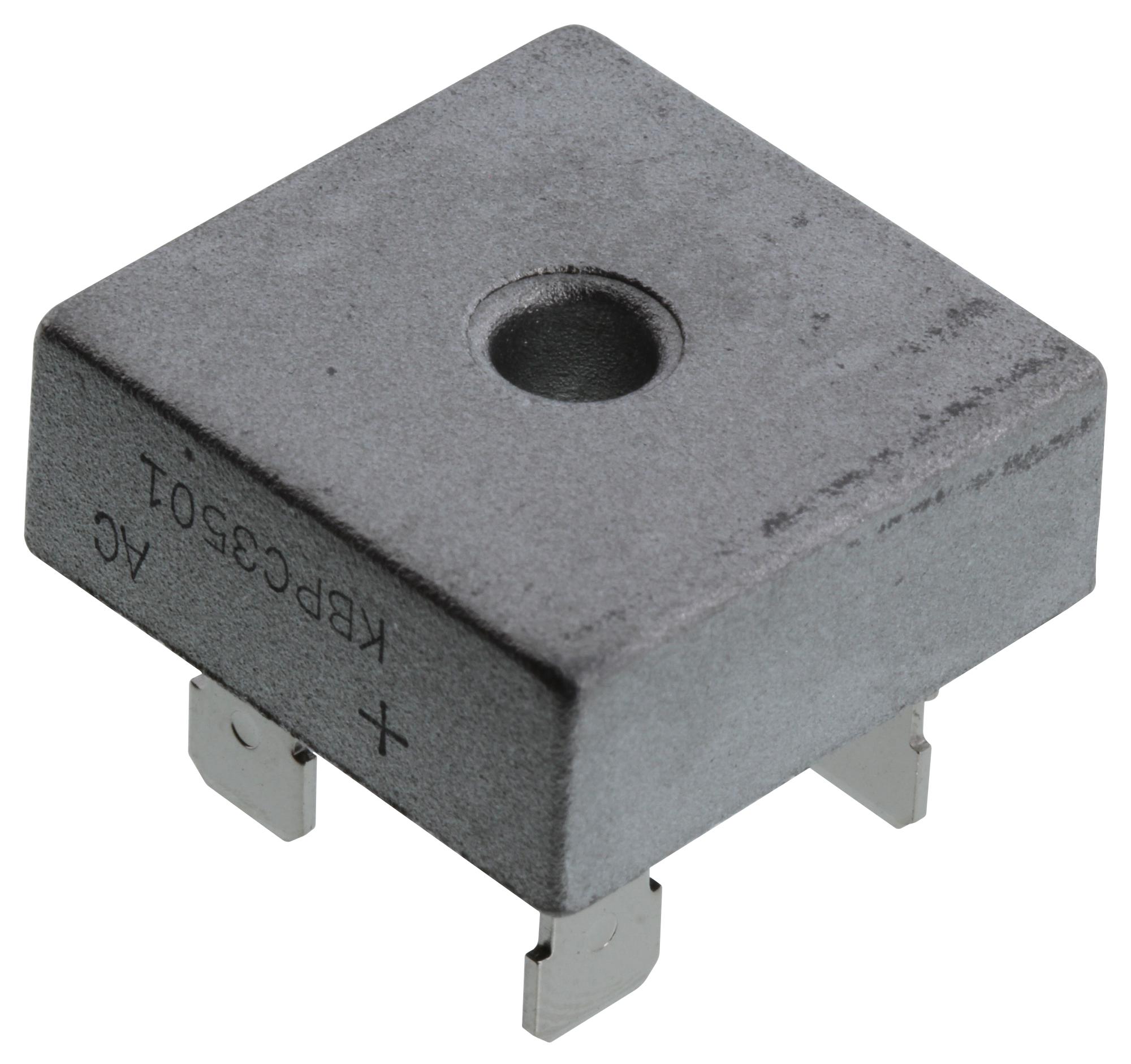

MULTICOMP PRO KBPC3501 Bridge Rectifier
This glass passivated bridge rectifier offers reliable performance for converting AC to DC in various electronic circuits. It features a maximum reverse voltage of 100V and an average forward rectified current of 35A, with low forward voltage drop for efficiency. The device is capable of surge overloads up to 400 Amperes peak, and its electrical isolation base withstands 2000 Volts. Suitable for any mounting position, it operates within a temperature range of -55°C to +150°C, making it ideal for power supplies, inverters, and industrial electronics demanding high durability and efficiency.
MULTICOMP PRO KBPC3501 Bridge Rectifier Specifications:
- Maximum Reverse Voltage: 100V
- Maximum Forward Current: 35A
- Surge Overload Capacity: 400A peak
- Forward Voltage Drop: 1.4V at 5.0A
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Electrical Isolation: 2000 Volts
- Mounting Position: Any
- Dimensions: 1.442 inches (36.6mm) x 0.693 inches (17.6mm)
- Terminal Type: Solderable 0.25" FAST ON
- Leakage Current: 10 Microamperes at rated voltage
- Peak Recurrent Surge Current: 400A
- Max. Forward Voltage Drop: 1.4V per element
Buy the Buy Multicomp Pro Glass Passivated Bridge Rectifier Part Number KBPC3501 Online
Purchase the Multicomp Pro KBPC3501 bridge rectifier online today for reliable AC to DC conversion in power supplies and industrial electronics. This high-performance component offers a maximum reverse voltage of 100V and a forward current of 35A, ensuring efficient energy conversion and long-lasting durability. Its surge overload capacity reaches 400A peak, ideal for demanding applications. With a compact size, flexible mounting, and excellent thermal stability from -55°C to +150°C, this device is perfect for industrial, automation, and power management systems seeking dependable rectification solutions.
Get Multicomp Pro KBPC3501 today—designed for high-current power conversion with low forward voltage drop and excellent surge overload capacity.
