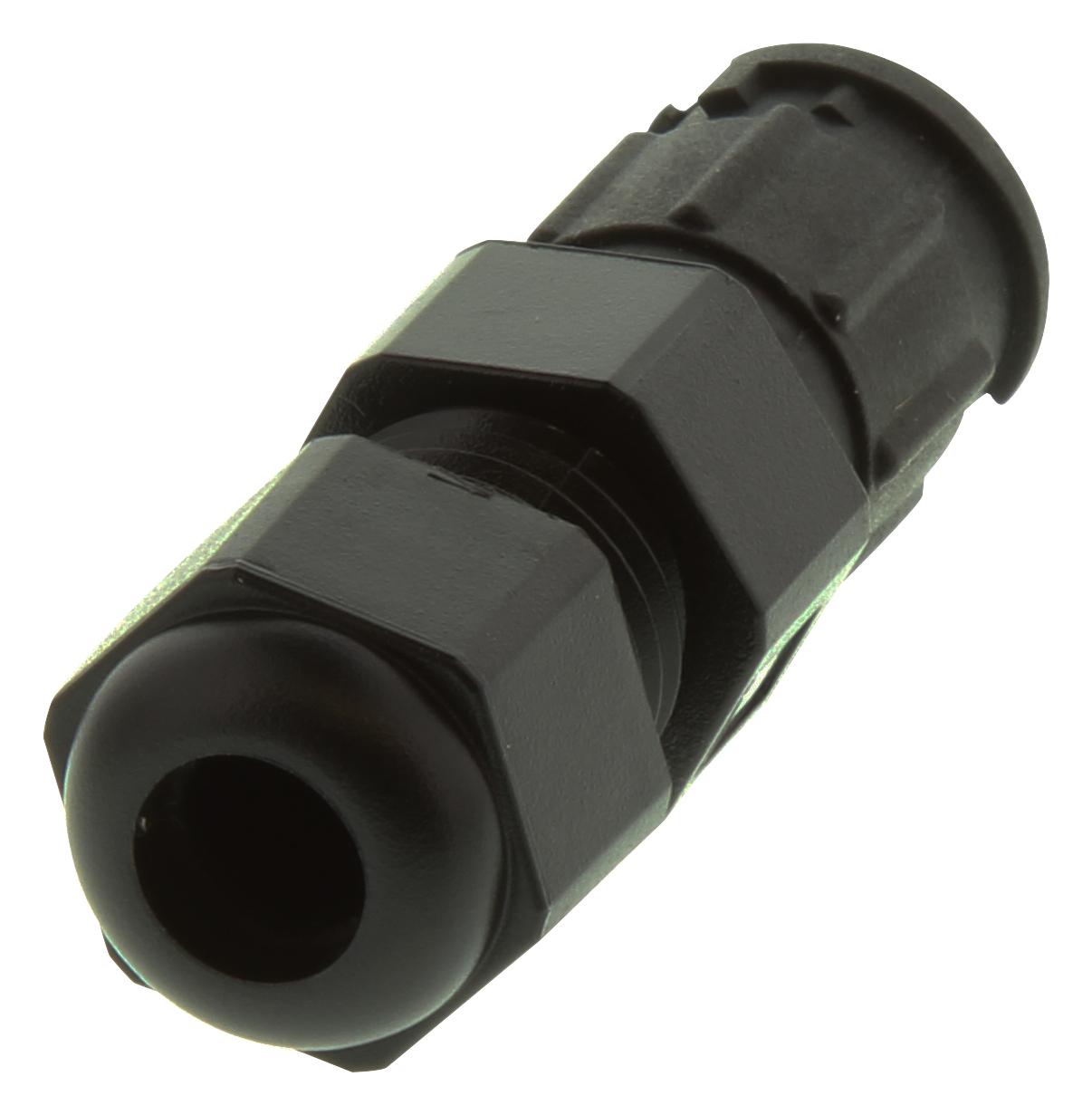

MULTICOMP PRO 2CT3033W07300 waterproof wiring connector
The 2CT3033-W07300 from Multicomp is a 7-way, 5A circular in-line connector with solder pin termination, designed for field wiring applications. It features an IP67-rated waterproof housing made from nylon with glass reinforcement and polybutylene terephthalate. The connector has copper alloy pin contacts with gold plating to ensure low contact resistance (≤30mΩ) and high corrosion resistance. Insulation resistance exceeds 100 MΩ at 500VDC, with durability rated for 500 connection cycles. Operating temperature ranges from -40°C to +100°C. It supports wire gauges from 22 to 24 AWG, with cable outer dimensions between 4mm and 6.5mm. Suitable for industrial environments, it features a lock-type mating style for secure connections, and is rated highly for quality and customer satisfaction. The product includes a 12-month limited warranty.
MULTICOMP PRO 2CT3033W07300 waterproof wiring connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Male pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: ≤30mΩ (without cable)
- Insulation Resistance: >100 MΩ at 500VDC
- Durability: 500 cycles Min.
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67
- Rated Current: 5A
- Rated Voltage: 500V
- Wire Size: 22-24 AWG
- Dimensions: Support wire OD 4-6.5mm, typical ins. thickness 0.030 inches
- Plating & Colour: Gold Plated, Black
- Sealing Nut Material: PC
- Gasket: Silicone
- Clamp Ring Material: PC
- Body Material: Nylon+33%GF
- Pin Material: Nickel Plated HBi59-1.5B
- Connection Cycles: 500
- Operating Temp: -40°C to +100°C
- Rating: 10A, 18AWG to 20AWG (varies by version)
Buy the Multicomp Series 7-Way Waterproof Solder Pin Connector: 2CT3033W07300
Buy the Multicomp 7-way waterproof wiring connector online today and benefit from its IP67-rated waterproof housing, gold-plated contacts, supporting 22-24 AWG wire, and operating within -40°C to +100°C. Designed for industrial environments, it features a lock-type mating system for secure connection, high durability with 500 cycles, and an insulation resistance exceeding 100 MΩ. Perfect for field wiring applications, this connector ensures reliable performance in harsh conditions, backed by a 12-month limited warranty, making it the ideal choice for professionals requiring quality and dependability.
Order your Multicomp Series 7-Way Waterproof Solder Pin Connector today and ensure secure, reliable wiring for your industrial projects.
